Main Applications
- Visual Inspection for Fiber connectors, Transceivers, TOSA/ROSA.
Excellent image quality
EasyCheck AF adopts the digital video solution to improve image quality, resulting in clearer images, lower noise and higher contrast in fiber endface inspection.

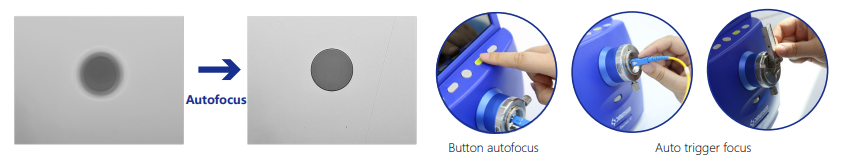

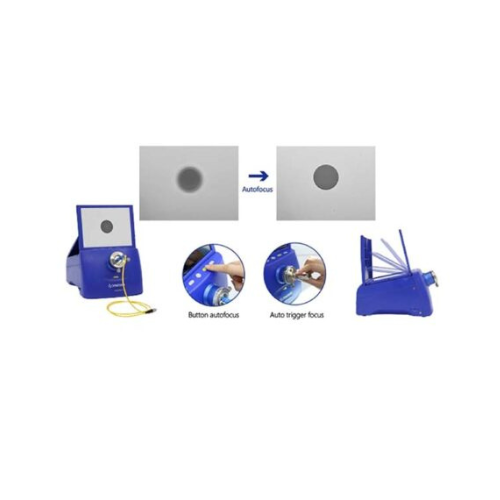

Fast-autofocus，Improve inspection efficiency
Offers one-click autofocus mode and fully autofocus mode. Simplifies the visual inspection, improves the testing accuracy, consistency and efficiency.

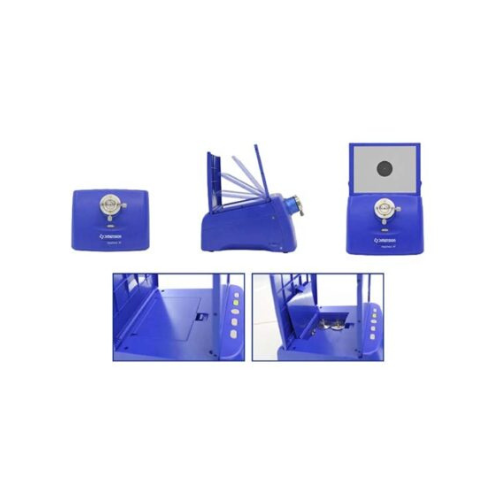

View-angle adjustable monitor，Improve testing experience
The view-angle of the monitor can be adjusted individually to be more user-friendly. EasyCheck AF can be fully folded for easy storage and transportation.
Built-in storage warehouse
EasyCheck AF is compatible with multiple interfaces, and the built-in accessory storage warehouse is convenient for interface storage to prevent loss.

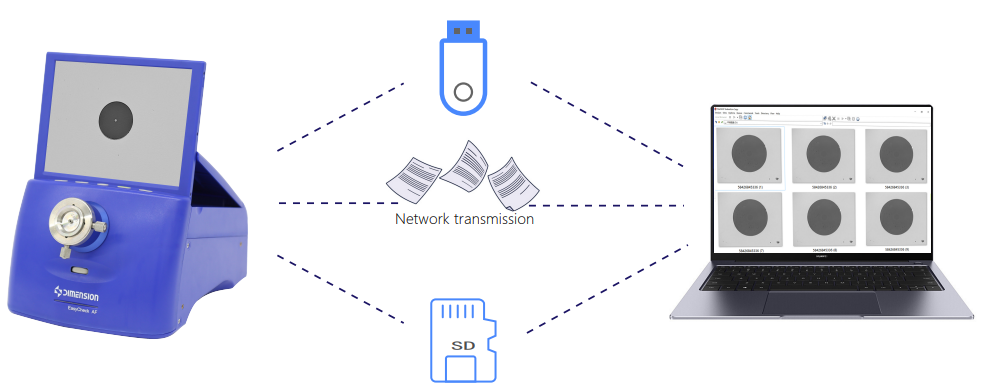

Network transmission
EasyCheck AF has images acquisition function and supports multiple storage media, including SD card, U disk and network transmission storage. The name of the image is editable and automatically entered for further analysis.
Video input and output
EasyCheck AF provides image input and output functions, which can be connected to the HDMI interface display screen to meet the special needs of users; it can be interconnected with EasyGet Digital handheld fiber probe to easily inspect various female connectors.
Interface list
EasyCheck AF is equipped with a variety of adapter interfaces to inspect various fiber connectors, transceivers, TOSA/ROSA, etc. The following is a list of some common interfaces.
More accessibility features
EasyCheck AF has multi communication ports to access external devices, like LAN router, bar code scanner, foot pedal, mouse and keyboard. It offers more choices to input text, start measurement and manage testing results.

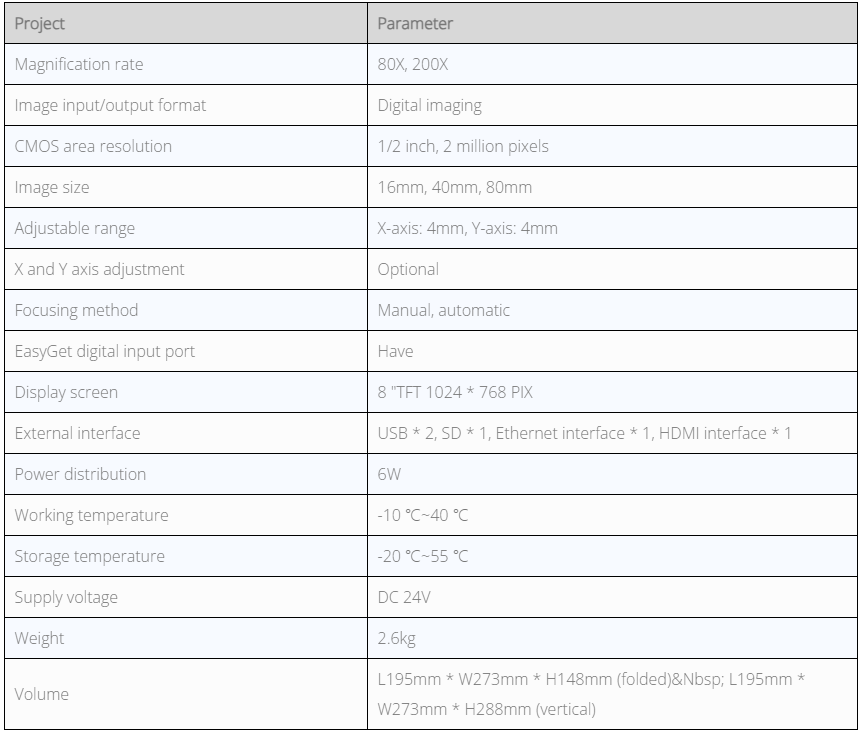

Specifications
