EasyCheck V2 Digital Fiber Endface Inspector
Next-gen all-digital fiber end-face detector with digital imaging for enhanced internal capabilities.
Digital imaging scheme with high image resolution and low noise
Stable performance, good consistency, and low failure rate
Storing images for clarity
Supports multiple storage methods such as SD card, USB flash drive, and network transmission
Can be associated with EasyGet; Digital connection detection for variable female connectors
More auxiliary functions
Multiple magic, 80X, 200X, 400X
Product Overview
The appearance remains, but the heart is stronger EasyCheck; V2 is a new generation fully digital fiber end face detector carefully crafted by Dimension Technology It adapts the latest digital imaging solution and upgrades the software and hardware of the EasyCheck series products, improving image resolution and reducing sound; Stable performance, better consistency, and reduced failure rate; With network transmission and EasyGet; Digital handheld device interconnection, external scanning gun or foot switch, and more functions
Main features
Digital imaging scheme with high image resolution and low noise
Stable performance, good consistency, and low failure rate
Storing images for clarity
Supports multiple storage methods such as SD card, USB flash drive, and network transmission
Can be associated with EasyGet; Digital connection detection for variable female connectors
More auxiliary functions
Multiple magic, 80X, 200X, 400X
Main applications
Fiber optical connectors, optical transmission modules, TOSA/ROSA; Component and other end face inspection
Digital imaging for better image quality
EasyCheck; V2 options the latest digital imaging scheme to improve image resolution, reduce noise, achieve clear image quality, and enhance the contrast of end face defects
Good consistency and low failure rate
EasyCheck; V2 ensures consistency between devices, stable performance, and significantly reduces failure rates through hardware upgrades
Storing images for clarity
EasyCheck; V2 stores clearer images
Supports multiple storage methods
EasyCheck; V2 has image acquisition function and supports multiple storage methods, including SD card, USB flash drive, and network transmission storage The image name can be customized and automatically entered, which can effectively analyze the quality of stored images
Image input/output

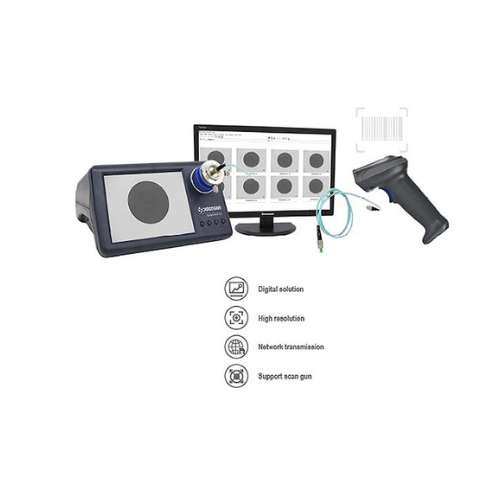

EasyCheck; V2 provides image input and output functions, which can be connected to HDMI interface display screens to meet the special needs of customers; EasyGet compatible with Dimension Technology; The Digital portable fiber end face detector is interconnected to easily handle the detection of various female connectors
More auxiliary functions
Satisfying the operability of production line employees, it can automatically input product serial numbers with an external barcode scanner, trigger image storage with an external foot switch, and customize settings with an external keyboard and mouse for more conservative and effective use
Interface List
EasyCheck; V2 is equivalent with multiple adapter interfaces, which can meet various fiber optical connectors, optical transfer modules, TOSA/ROSA; Component and other end face inspection requirements The following is a list of some common interfaces
Performance Parameter
Project | Parameter |
Magnification rate | 80X; 200X; 400X |
Image input/output format | Digital imaging |
Sensor | 1/2 inch; CMOS |
Image size | 16mm; 40mm; 80mm |
Adjustable range | X-axis: 4mm; Y-axis: 4mm |
X and Y axis adjustment | Optional |
Focusing method | Manual |
EasyGet Digital input port | Have |
Display screen | 8 "TFT 1024x768 PIX |
External interface | 2xUSB; 1xSD; 1x Ethernet interface; 1xHDMI interface |
Power distribution | 6W |
Working temperature | -10 ℃~40 ℃ |
Storage temperature | -20 ℃~55 ℃ |
Supply voltage | DC 12V |
Weight | 1.6kg |
Volume | 270mmX245mmX155mm |
