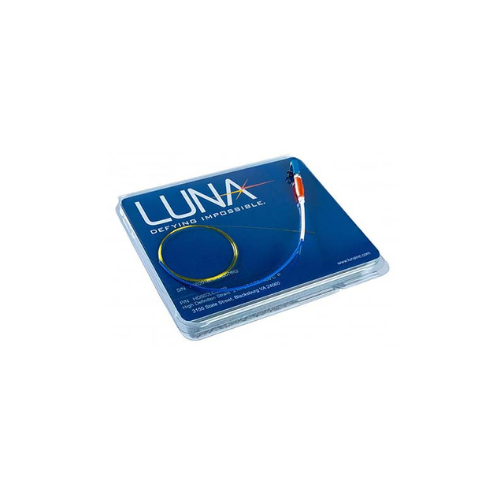

HD6S : High-Definition Fiber Optic Strain Sensors
HD strain sensors are low-profile versatile fiber optic sensors which, when used with an ODiSI system, can provide more than a thousand distinct strain measurements per meter. Using standard unaltered optical fiber, HD strain sensors are packaged to deliver maximum flexibility with optimal strain transfer in a wide variety of applications and installations.
Key Features
- Low-profile and flexible for complex geometries and embedded applications
- NIST-traceable calibration
- High-density strain measurements
- Dielectric and EMI/EMC immune
- Plug-and-play operation with ODiSI system
Specifications
- Standard sensor lengths:
- Available from 1 m to 100 m
- Sensor diameter:
- 155 µm
- Operating temperature range:
- -40 to 300 °C
- Fiber type:
- Polyimide coated low bend loss fiber
- Connector:
- LC/APC
