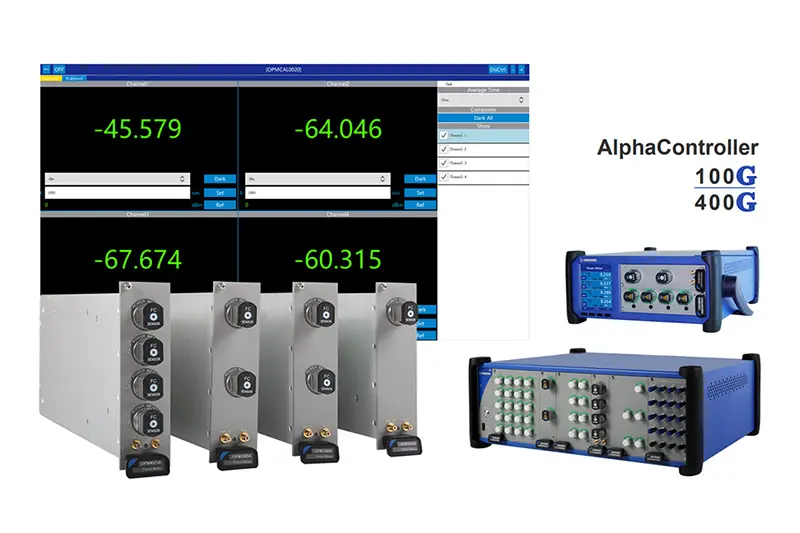

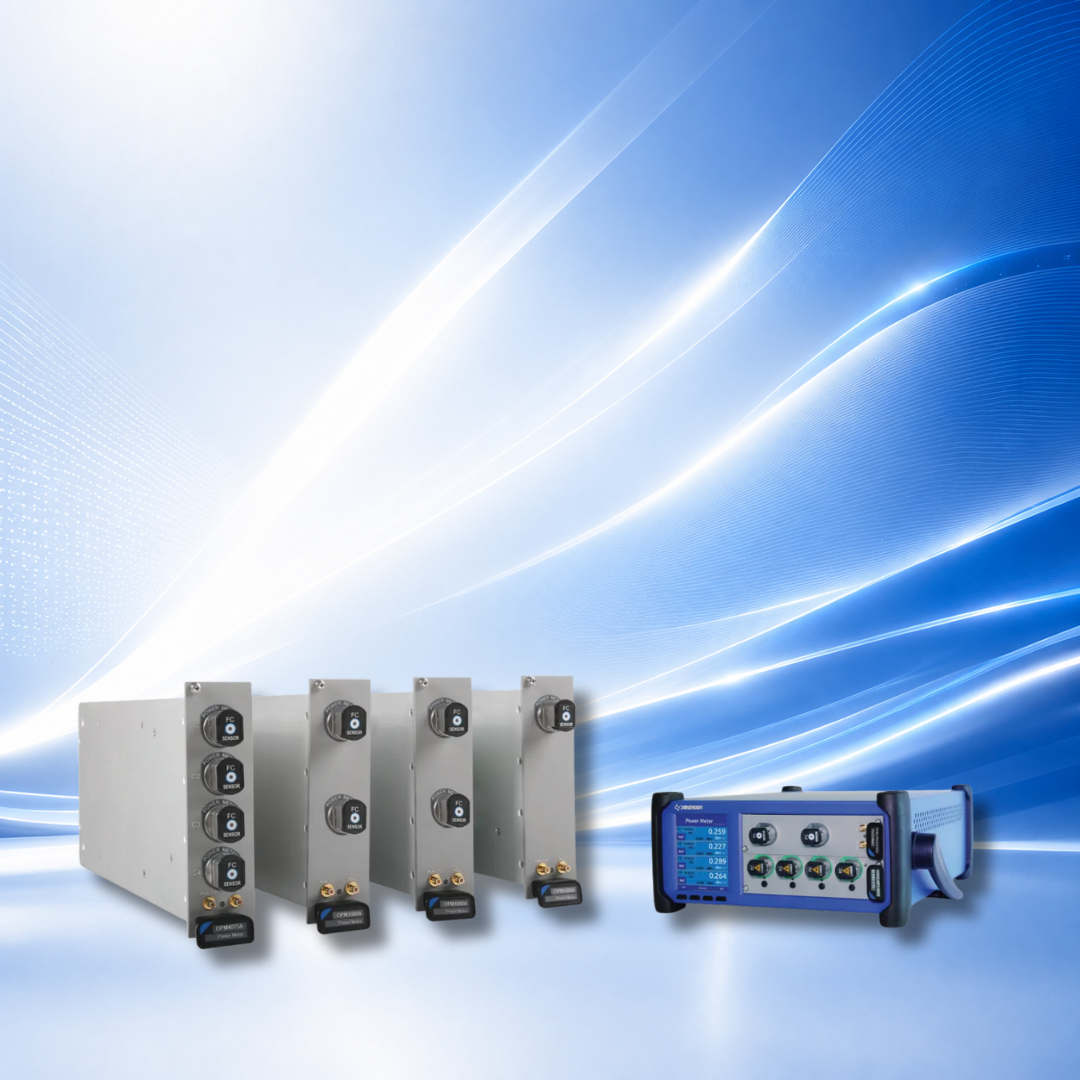

High-speed Optical Power Meter
When the optical power changes at a high speed, it is a great challenge for the power meter to accurately and quickly capture the power value. The traditional optical power meter cannot meet the demand for high-speed and accurate measurement. Therefore, the high-speed optical power meter came into being. Traditional optical power meters take a lot of time in power value integration and gain shift switching in order to measure the accuracy of numerical values and the requirements of large dynamic range, so they cannot output effective optical power values quickly and accurately. Therefore, it cannot meet the application requirements of high-speed automated test systems and high-speed monitoring systems.
Dimension Technology’s high-speed optical power meter ensure high-speed power output and meet the needs of large dynamic range at high speed in principle design and component selection. It has batch acquisition working mode and trigger acquisition mode, and can provide high-speed continuous acquisition of up to 10KHz,large dynamic range (+10dBm~-70dBm), and a storage depth of 10 million measurement data(Each channel). Cooperating with tunable light source products, it provides a high-efficiency and high-performance test solution for the rapid scanning of optical passive devices (DWDM, AWG, WSS and so on)
Main Applications
- Optical passive devices (DWDM, AWG, WSS …) wavelength rapid scanning test
- Optical active device/passive device PDL high-speed scanning test
- Fast capture of optical signals in the field of optical fiber sensing
- Fast optical coupling automated test system
- Optical chip rapid test system
- Automated high-speed test system
- Optical network optical signal monitoring system
- Research laboratory
Continuous acquisition frequency up to 10KHz (full power range)
The high-speed optical power meter can quickly acquisition and measure the transient fluctuation and noise of the optical signal, restore the fluctuation details of the signal, and characterize the continuous change of the optical signal.
Support automatic gain shift acquisition measurement in high-speed mode
Provides fast automatic gain shift acquisition in high-speed mode, which is very important for accurate acquisition and measurement of power changes in large dynamic range scenarios.
Each channel has a storage depth of up to 10 million
Support continuous trigger acquisition mode
User configurable trigger input port (trigg-in), users can connect an external trigger signal (eg.tunable light source) to the power meter trigger-in port according to their own test requirements to achieve continuous trigger acquisition, synchronous trigger, acquisition data.
Support single trigger batch acquisition mode
Users can connect the external trigger signal to the trigger-in port of the power meter according to their own test requirements to achieve single trigger batch acquisition function.
Support fixed gain compensation setting
The fixed gain compensation setting can achieve high-speed acquisition faster, and the response time for large dynamic range data acquisition is shorter. It is easier to capture the transient changes of the signal.
User-configurable analog output port
Users can use the analog output port to connect with an oscilloscope to realize synchronous observation of the acquisition signal.
Support optical power detection range in high-speed mode: +10dBm~-70dBm
Users can use the analog output port to connect with an oscilloscope to realize synchronous observation of the acquisition signal.
Support any wavelength setting within the wavelength range of 850nm~1650nm
In order to ensure the accuracy of power measurement at any wavelength in the range of 850nm to 1650nm, Dimension Technology has accurately calibrated light sources of different wavelengths. Therefore, our power meter supports users to set any wavelength and ensures the accuracy of power.
Support any wavelength setting within the wavelength range of 850nm~1650nm
In order to ensure the accuracy of power measurement at any wavelength in the range of 850nm to 1650nm, Dimension Technology has accurately calibrated light sources of different wavelengths. Therefore, our power meter supports users to set any wavelength and ensures the accuracy of power.
Typical application
Combined with a tunable light source, the main application of high-speed optical power meters in the wavelength scanning test of optical passive devices.
In the fast scanning test of passive components (DWDM, AWG, WSS, etc.), spectral isolation is a key feature for testing multiple wavelength multiplexing devices. It will determine the crosstalk of signals at different wavelengths, evaluate and measure the insertion loss and the inhibition of other wavelengths is an important indicator of isolation or routing wavelengths to other port.
Support optical power detection range in high-speed mode: +10dBm~-70dBm
The universal optical test platform OMEGA is equipped with Ethernet interface, RS232 interface and USB communication interface. Users can easily realize secondary software development through the universal communication protocol instruction set. At the same time, we also provide exclusive DEMO software to facilitate customer evaluation and showing.
For user convenience and maximum flexibility, Dimension provides a wealth of interchangeable detector adapters (Applicable to various fiber connector types), as well as an fiber clamps that allow the bare fiber power measurement. The product comes with FC adapters in the form of a standard accessory, and also provides an external detector extension cable for remote head user selection.

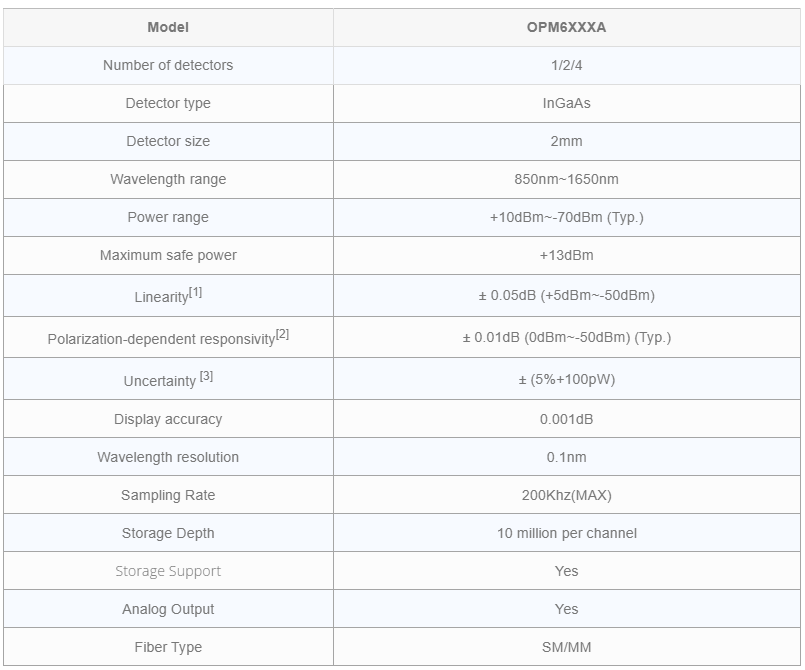

Specifications
General Specifications
Ordering Information
