MSL5201 T-Image Platform
Operating in reflection mode, the fiber coupled sensor heads deliver a picosecond duration T-Ray® pulse, allowing high speed, scanned images to be easily produced. Mounting the heads in transmission, and the sample to the translation stage allows high quality transmission images as well.

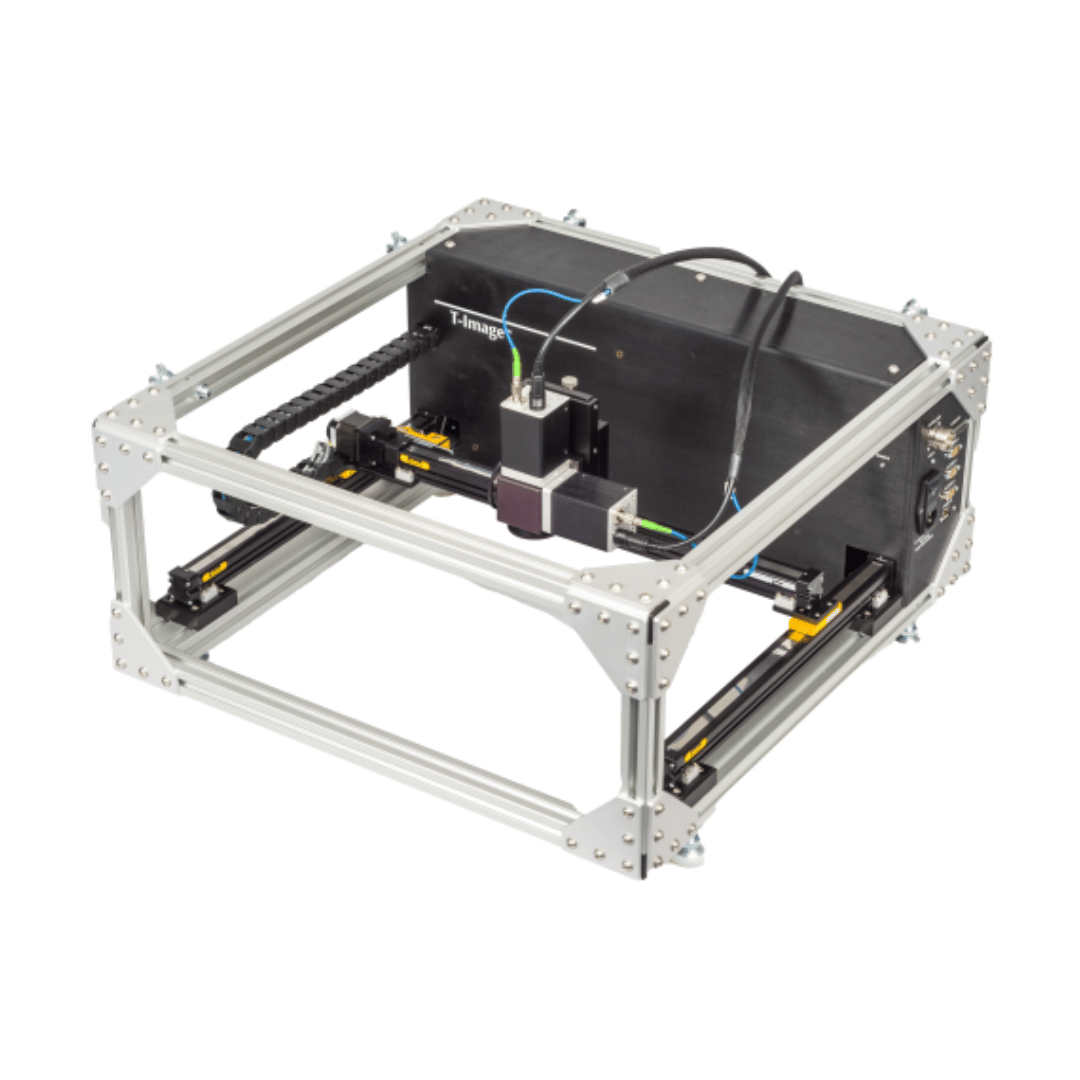

The LUNA MSL5201 T-Image Platform can be positioned for horizontal or vertical scanning. The transmitter and receiver can be configured in transmission, or collinear reflection geometry by using the Collinear Adapter. The LUNA MSL5201 can move at speeds up to 150 mm/sec and can provide step resolutions below 30 microns. The motors are integrated with the required amplifier and encoder to allow high quality images to be acquired at speeds up to 1000 pixels per second. The T-Image has an embedded motion controller that is configured by software running on the Terahertz Control Unit.
Key Features
- Fiber coupled to allow easy movement
- Image resolution to 100 microns
- Perfect for field work
- Built to operate upright or prone
- Easy to use imaging software available
- Transmission or reflection images
- Multiple lens configurations available
Applications
- Time domain reflection tomography
- Nondestructive materials inspection
- Package inspection
- Semiconductor wafer inspection
- Medical and biological imaging research
- Remote threat detection
- Homeland Security research
Specs
- Scan range:
- 30 cm
- Minimum step:
- < 30 microns (20 – 90% RH non-condensing)
- Focal lengths:
- 25, 75, 150 mm
- Voltage Requirements:
- 110/240 VAC (50/60 Hz self-sensing)
- Size (W x H x D):
- 26 x 27.5 x 13 inches
- Weight:
- 47 lbs (Reflection configuration without sensor)
