Multi-channel polarity IRL
Integration of IL, RL, and polarity testing, improving efficiency by 600%
• RL mandrel-free, IL, RL and polarity detection, single channel test time as low as 1.5S
• Support various optical devices to test fiber polarity
• Three-in-one automatic test of mpo fiber IL.RL and polarity
• Save work stations and increase production and test efficiency by more than 6 times
• Abundant and interchangeable, high-reliability detector adapter connectors
• Support PC segment control software, automatically save test data reports, and support remote network control
Product Overview
The current insertion and return loss tests on the market can only test insertion and return losses, and cannot be quickly synchronized and determined by multi core The polarity insertion loss tester of Dimension Technology has completed the automatic testing of multi core fiber IL, RL, and polarity three in one through a new design and technology This device is not only has simple political judgment, but also has political learning function In response to the increasing number of line sequence situations, it significantly improves production efficiency, reduces equipment investment costs, and ensures IL while improving efficiency reliability and accuracy of RL measurement.
Main Features
- RL mandrel-free, IL, RL and polarity detection, single channel test time as low as 1.5S
- Support various optical devices to test fiber polarity
- Three-in-one automatic test of mpo fiber IL.RL and polarity
- Save work stations and increase production and test efficiency by more than 6 times
- Abundant and interchangeable, high-reliability detector adapter connectors
- Support PC segment control software, automatically save test data reports, and support remote network control
Main Applications
- Jumper, connector performance testing
- Performance testing of optical passive components
- Construction of automatic jumper production line
RL mandrel-free test, IL, RL and polarity detection, single channel test time as low as 1.5S
Based on the principle of optical time domain detection, the mandrel-free test of return loss is realized. Using high-speed sampling design and software optimization algorithm, low IL , RL and polarity detection single channel to 1.5S (fast mode)

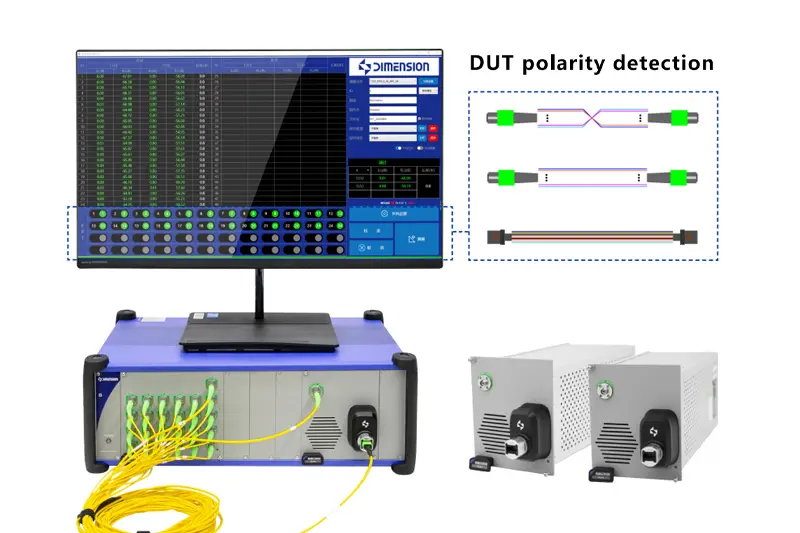

Support various optical devices to test fiber polarity
Based on the years of the experience accumulation researching on optical lenses. it has realized a large photosensitive area, and the polarity learning of optical devices within the area can be easily customized and completed.
Multi-core fiber IL.RL and polarity three-in-one automatic test
Multi-channel polarity insertion return loss tester can quickly realize mandrel-free multi-core optical fiber. Patch cord return loss test and insertion loss test, at the same time can realize multi-core optical fiber. Polarity detection, truly realizing the three-in-one automatic test of loss and polarity.
Save work stations, increase production and test efficiency by more than 6 times
The multi-channel polarity return loss tester can automatically test IL, RL, and Polarity at the same time, reducing the need for employees to plug and unplug the measurement jumper and equipment multiple times between testing IL/RL and polarity. Single-channel IL, RL, Polarity simultaneously test time as low as 1.5S (fast mode). The test efficiency is increased by more than 600%, and the cost of customer equipment investment can also be reduced.
Abundant and interchangeable, high-reliability connectors
In order to meet the different needs of customers, a series of rich and interchangeable detectors with high reliability have been developed. Adapter connector, easy to use, one-time test loss and polarity, no need to plug and unplug again.
Humanized software design
With a simple and clear software UI design, users can customize the test report, which can automatically save and upload test data and reports.
Specifications
Ordering Information
Example：
RLM1612A-1FA-24 24-core winding-free polarized insertion return loss meter module wavelength 1310/1550 single-mode 9/125 InGaAs 2mm light source output port 1CH interface type FC/APC
[1] The two digits represent the positions of the two lasers, and the customer can select the laser wavelength or customize the laser wavelength in the
list. Remarks: The RL implementation mode A/C model supports dual laser wavelengths, and the two-digit codes represent two laser wavelengths respectively. Customers can select laser wavelengths or customize laser wavelengths
in the list. Model B supports 4 single-mode wavelengths, and the laser wavelength needs to be XX.
