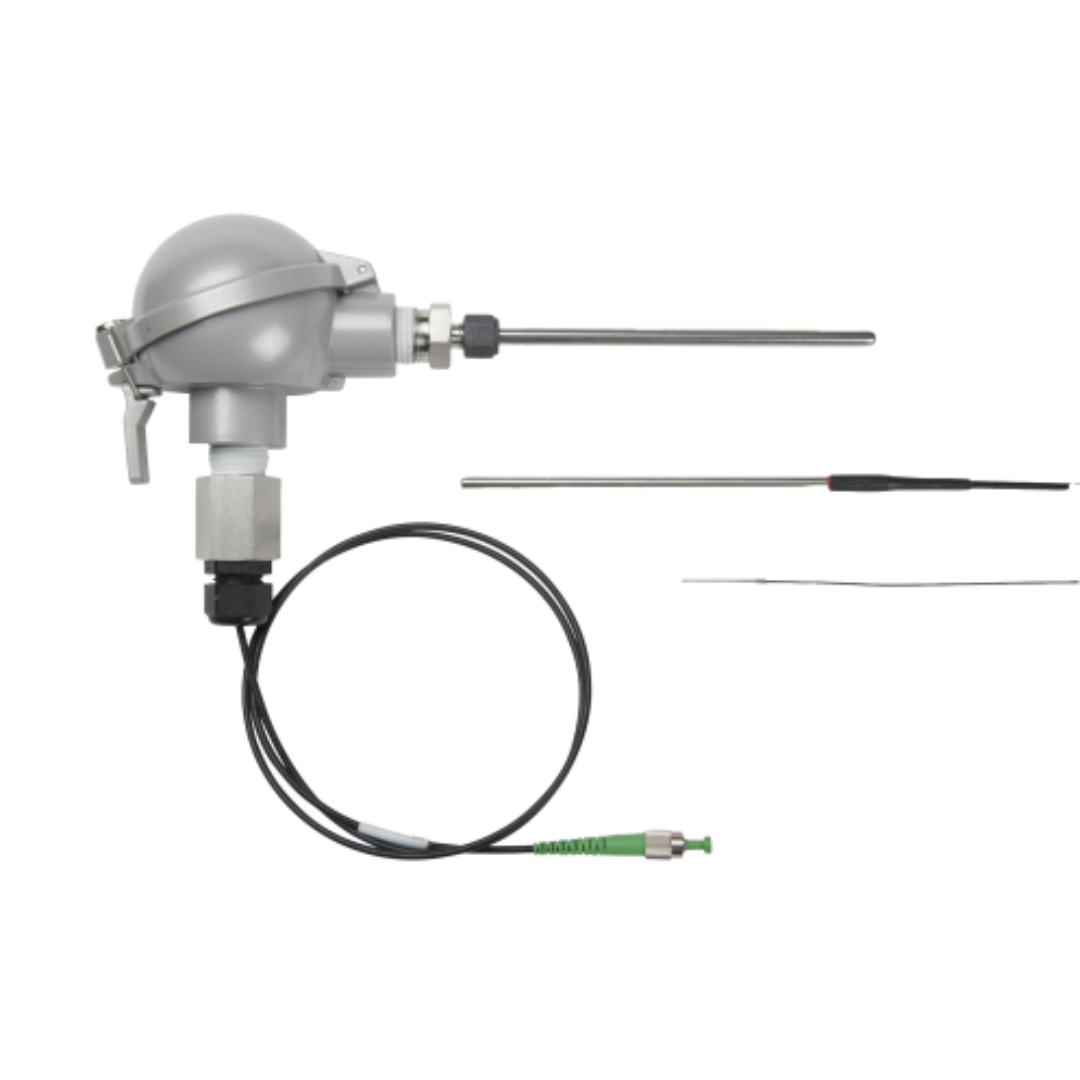

OS4200 : Temperature Probes
OS4210 , OS4230 , OS4280
The os4200 Temperature Probes are sealed, stainless steel tubes that are designed to make handling and installation easy, fast and repeatable. With no epoxies holding the fiber to the tube, long term stability is ensured by design.
In side by side comparisons with conventional thermocouples, the os4200 is equally sensitive and accurate, while providing sub-second response time, wider operating range, no calibration, and no EMI noise. The os4200 Temperature Probe is qualified for use in harsh environments and delivers the many advantages inherent to all FBG based sensors.
This sensor can be used alone or in series at the end of an FBG sensor array. Installation and cabling for such arrays is much less expensive and cumbersome than comparable electronic gage networks. Options include packages that operate like conventional thermocouples with armored cables, protected connectors and small probes that provide the user with both installation flexibility and sub-second response time.
With each sensor, Luna provides a Sensor Information Sheet listing the calibration coefficients needed to convert wavelength information into temperature. The ENLIGHT Sensing Software provides a utility to calculate and then record, display, and transmit data for large networks of sensors.
Key Features
- Calibrated for high absolute accuracy
- Fast response time
- Capable of measuring from -70 to +275 degrees C.
- Rugged sensor packages, qualified to same rigorous standards applied to electronic gages
- Double-ended design supports multiplexing of many sensors on one fiber
- Included in ENLIGHT’s sensor templates – allows for quick and easy optical to mechanical conversions
Specifications
- Operating temperature range:
- Standard: -40 to 120 °C
- Extended range: -70 to 275 °C
- Temperature sensitivity:
- ~10 pm/°C (±1.7 pm/°C)
- Cable temperature range:
- -40 to 250 °C (FC/APC connectors: -40 to 80 °C)
- Response time:
- os4210: 0.3 s
- os4230: 1.5 s
- os4280: 8.5 s
- Accuracy (Standard calibration):
- 1.0 °C (0.6 °C short term, typical)
- Accuracy (Premium calibration):
- 0.5 °C (0.2 °C short term, typical)
