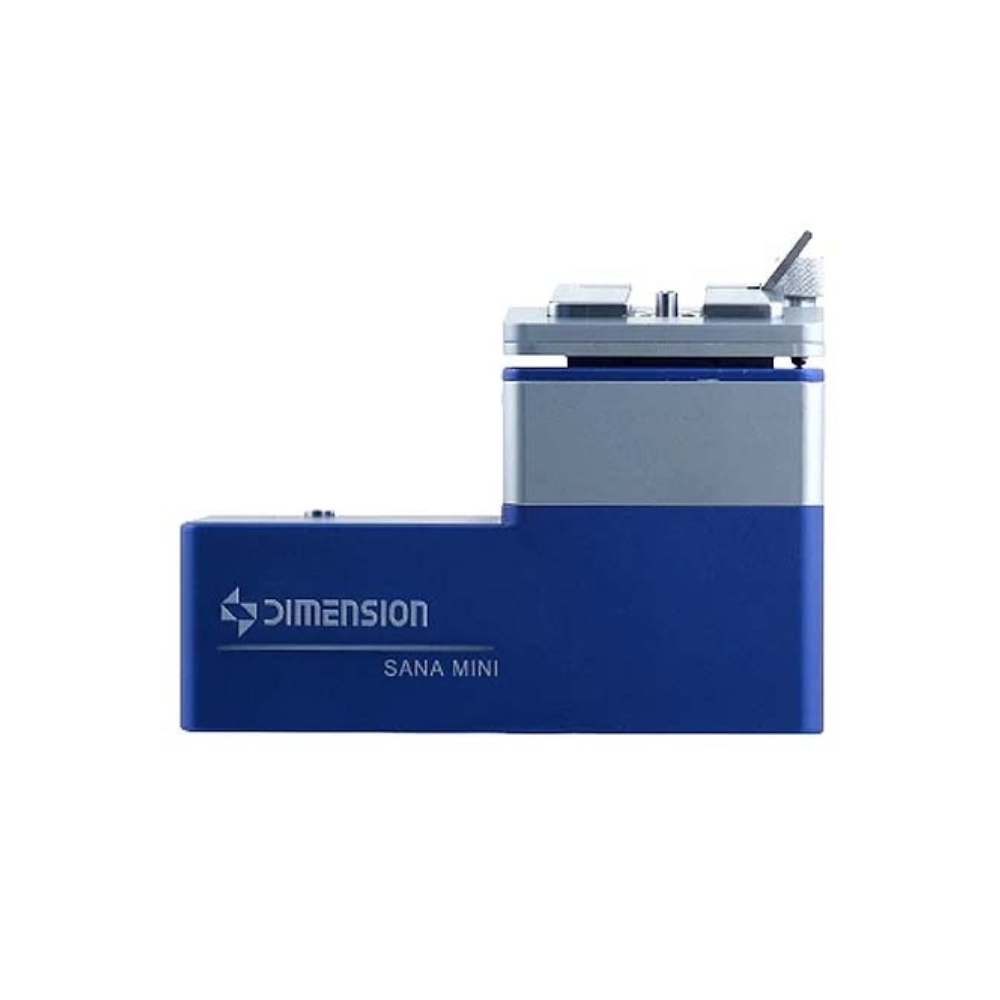

SANA MINI Fiber Endface Interferometer
Compact non-contact interferometer for precise testing of single-core fiber connector, bare fiber, and bare-inserted fiber end-face geome
Compact in size
Automatic centering fiber
PC; And; APC; Switching is simple and convenient
Equivalent with variable high precision testing fixtures
Product Overview
SANA; The MINI single core fiber end face interface is a portable non-contact interface developed by Dimension Technology This intermediary has a very small volume and can also test the geometric parameters of the fiber end face for single core fiber connectors, bare fibers, and bare insert cores Our unique and ingenious design allows us to operate in a very small SANA; All functions of SANA have been implemented on the mini, leading to the era of portable testing for end face geometry detection
Main features
Compact in size
Automatic centering fiber
PC; And; APC; Switching is simple and convenient
Equivalent with variable high precision testing fixtures
Main applications
Used for inspecting fiber optical inserts, jumpers, tail fibers, and bare fibers during polishing and assembly processes
Unparalleled convention and lightness

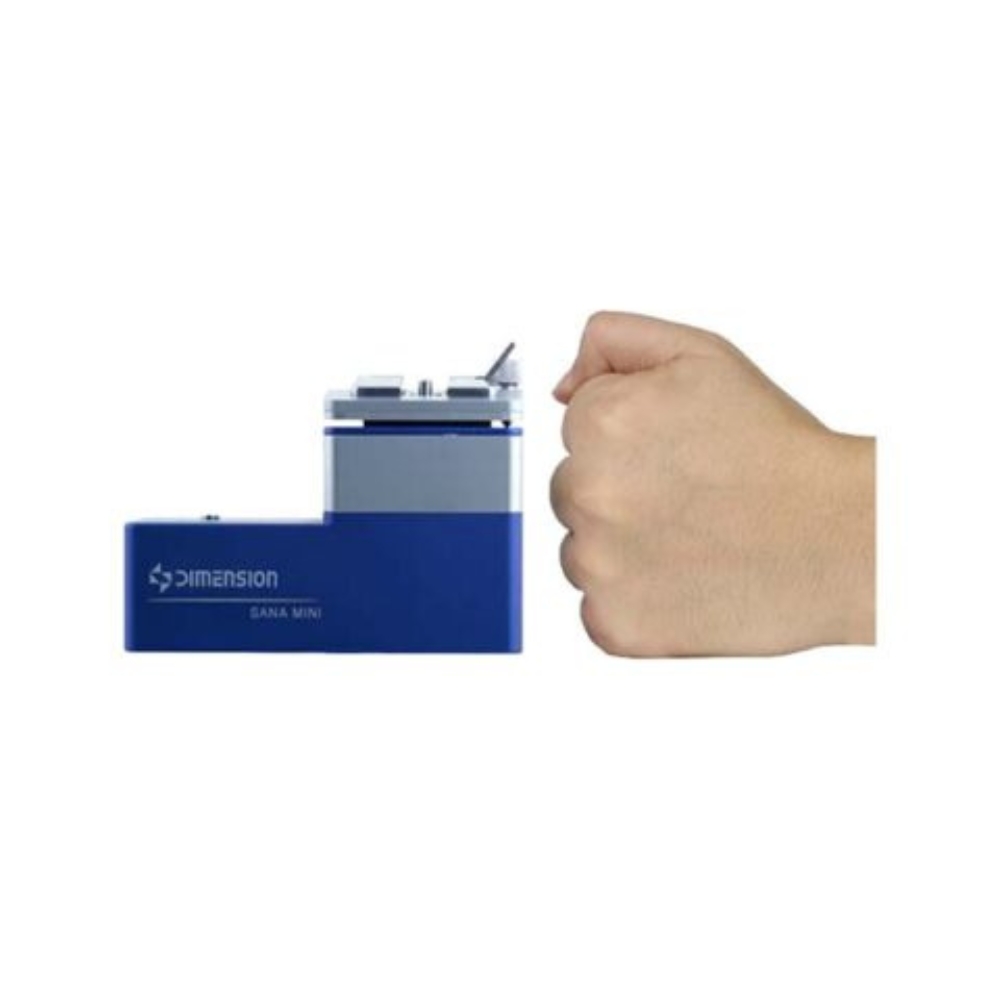

Small in size, only; In size; L120 *&Nbsp; W53 *&Nbsp; H80; (mm) Weight Only; 0.8kg; Exit exterior design; USD; Connect computer communication and power supply without the need for an external power source
Automatically maintain data tables and 3D graph reports
SANA; MINI; The intermediary measurement software interface is intuitive and clear, with the function of direct switching between Chinese and English; Realistic 3D restoration capability allows users to visually adjust the condition of the fiber end face, while generating surface roughness maps and vertex profile maps Data reports and 3D graph reports are easy to automatically analyze and save
Convent operational performance
The focus lever is inserted in the same position as the product; On one side, it is very conservative for personnel to operate&Nbsp; Exit structural design enablements; APC; And; PC; During testing, only one press is required to complete the switch
Unique fixture design with ingenuity
Equivalent with high precision testing fixtures:; 2.5mm; And; 1.25mm; Universal fixtures&Nbsp; 2.5mm; Universal fixtures can be used for testing; FC/PC, SC/PC, ST/PC, E2000/PC, DIN, FC/APC, SC/APC; Etc&Nbsp; 1.25mm; Universal fixtures can be used for testing; LC/PC, MU/PC, LC/APC; Etc&Nbsp; PC/APC; Switching is simple and convenient
Powerful testing performance
A powerful testing software developed with Dimension Technology, SANA; MINI; Can accurately measure fiber optic connectors; 3D; Parameters and three dimensional display of the end face condition SANA; MINI; By Telcordia; Certification, accurate and reliable test results

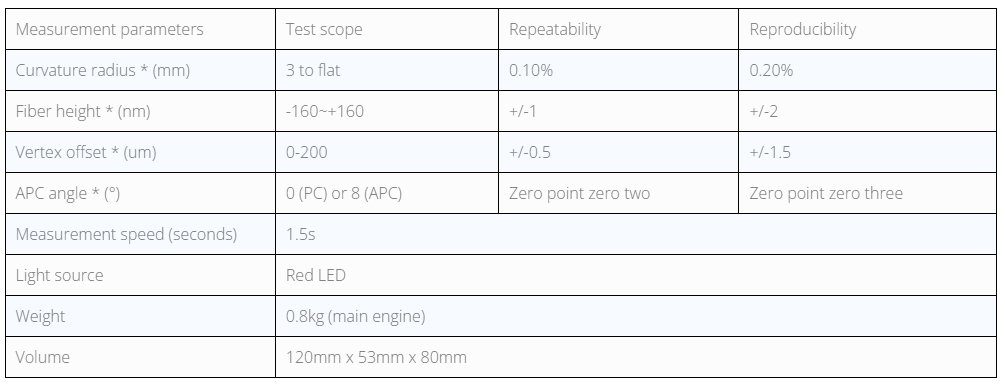

Performance parameter
