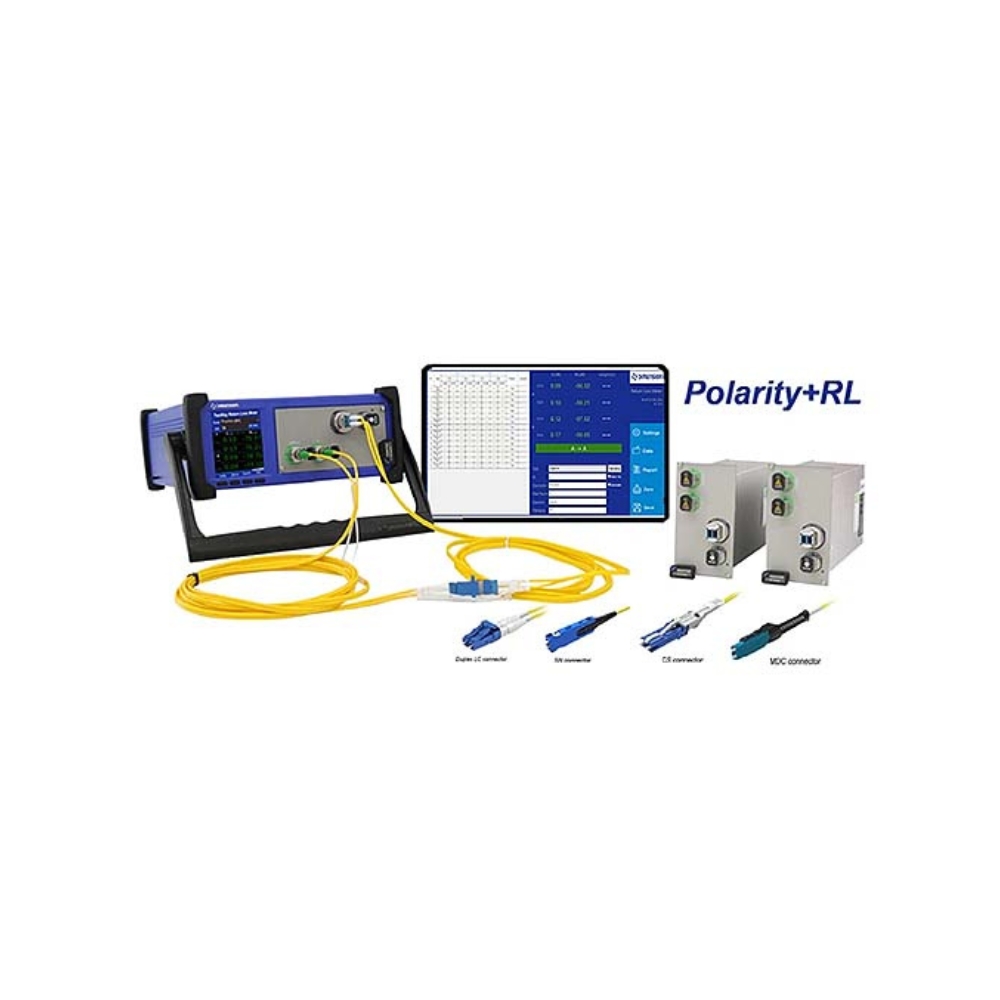

TwoWay fiber polarity and return Loss meter is a new product that Dimension uses innovative design concepts to solve the problems encountered in the current duplex fiber jumper test, which can realize the simultaneous automatic test of IL, RL and Polarity. The testing time of IL, RL and Polarity at the same time is less than 2s (fast mode), which can greatly improve the testing efficiency and reduce the cost of test equipment investment. At the same time, it also guarantees the reliability of IL and RL measurement under the premise of improving efficiency. The minimum can achieve -80dB Return loss detection (single mode). TwoWay’s fast and accurate measurement function is an effective tool to improve production efficiency and quality control.
Main Applications
- Fiber patchcord and connector performance test
- Other optical passive device performance test
Three-in-one automatic test of duplex fiber IL,RL and polarity
TwoWay fiber polarity and return Loss meter can quickly complete the winding-free return loss and insertion loss test of the duplex fiber jumper. At the same time, it can realize the polarity detection of the duplex fiber, and truly realize the three-in-one automatic loss and polarity test.
RL mandrel-free test, IL,RL and polarity test time is less than 2s
TwoWay is based on the principle of optical time domain detection to realize the winding-free return loss test. Using high-speed sampling design and software optimization algorithm, the total time of insertion loss, return loss and polarity detection is less than 2s (fast mode)
Reduce test work station and increase production test efficiency by more than 300%
TwoWay fiber polarity and return Loss meter can automatically test IL, RL, and Polarity at the same time, eliminating the need for employees to switch between testing IL/RL and polarity multiple times to switch testing STD jumpers and equipment. IL, RL, Polarity test time is less than 2s at the same time (fast mode), the test efficiency is improved by more than 300%, and the customer’s test equipment investment cost can be reduced at the same time.
RL minimum detectable down to -80dB(SM), Minimum measuring fiber length 0.7 m
TwoWay use the Dimension self-developed high-sensitivity detection circuit and the optimized software algorithm, RL can achieve the detection of -80dB(SM), which can meet the detection requirements of high-performance single mode patchcord (SM/APC).
Rich interchangeable, high reliability detector adapter, compatible with single fiber/ duplex fiber test
To meet the needs of customers, Dimension has developed a series of interchangeable, high reliability detector adapter, including duplex LC, SN, CS, MDC new connectors, that are flexible and convenient to use,and test loss and polarity at one time, no need re-plug.
Support PC-side control software, automatic saving test data/report, support remote network control
Concise and clear software UI design, users can customize test reports, and can automatically save and upload test data and reports.
Specifications
Detector Adaptors Selection Guide
Ordering Information
