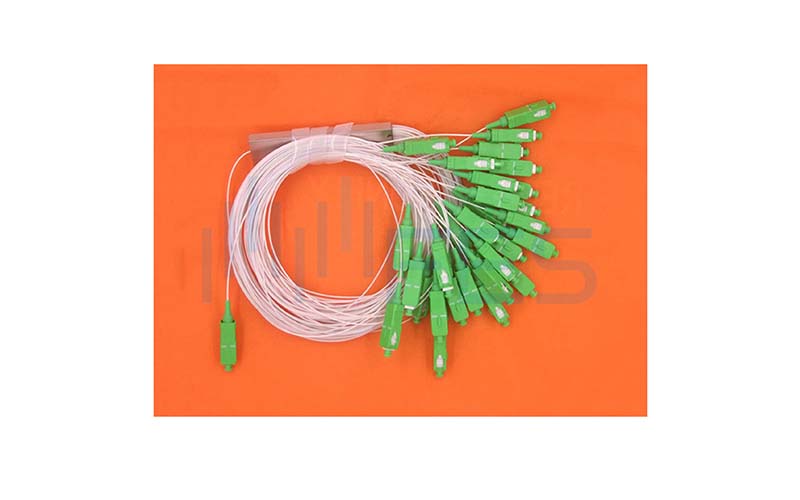

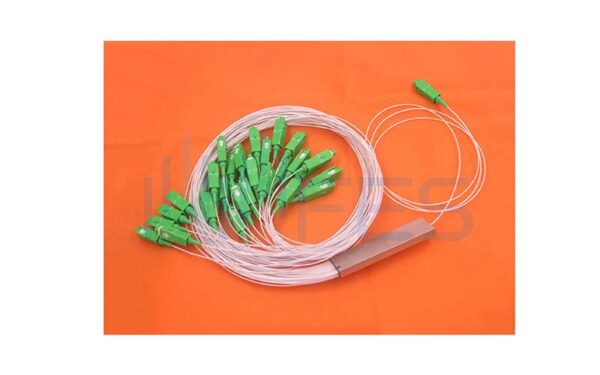

1×32 PLC Fiber Optic Splitter Mini 0.9mm 1.0m Pigtail SC/APC For Splitter Box Closure
Material : Steelless Tube Type
Length : 1.0m (ex-work)
Splitter Type : 1*32 1×32
Split Way : 1 Way Input & 32 Way Output
Connector : SC/APC
Cable : 0.9mm
Features:
- Made of high quality steel sheet
- Modularized design
- Convenient for installation and maintenance
- Low Insertion loss
- High return loss
- Low PDL
- Compact DesignGood channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1650nm
- Wide Operating Temperature: From -40°C to 85°C
- 1 & 2 input channel
- 4, 8, 16, 32 and 64 channel available
- High Reliability and Stability
- Telcordia GR-1209-CORE-2001 compliant
- Telcordia GR-1221-CORE-1999 compliant
- RoHS compliant
Applications:
- Fiber to The Point (FTTX).
- Fiber to The Home (FTTH).
- Passive Optical Networks (PON).
- Gigabit Passive Optical Networks (GPON).
- Local Area Networks (LAN).
- Cable Television (CATV).
- Test Equipment.
