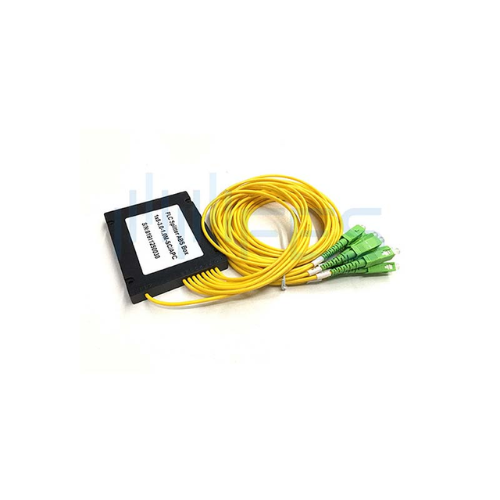

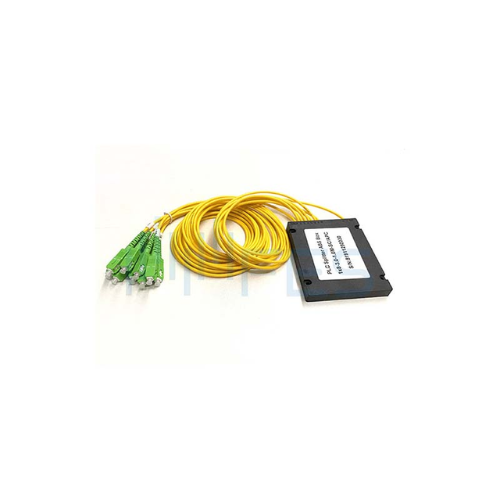

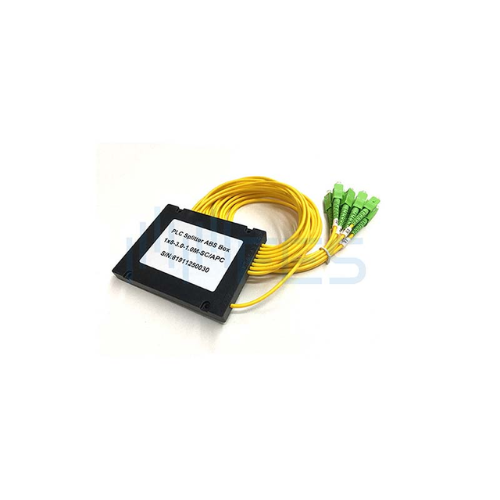

0.9mm 2.0mm 3.0mm Fiber Optic Coupler Splitter 1×8 ABS Box Modular Low Insertion Loss
Length : 1.0m
Split Way : 1 Way Input & 8 Way Output
Connector : SC/APC
Cable : 0.9mm/ 2.0mm/ 3.0mm
Features:
- Low insertion loss
- Low PDL
- High return loss
- Uniform power splitting
- Compact design
- Wide operating wavelength
- Wide operating temperature
- Excellent environmental &mechanical stability
- Qualified under telcordia GR-1221 and GR-1209
- Compact Size
- Wide Operating Wavelength: from 1260nm to 1650nm
- Wide Operating Temperature: from -40℃ to 85℃
- Adopt 100% new raw material, ROHS compliance
Applications:
- FTTx (FTTB, FTTH, FTTC)
- Passive optical networks (PON)
- Local area networks (LAN)
- CATV systems
- Test equipments
