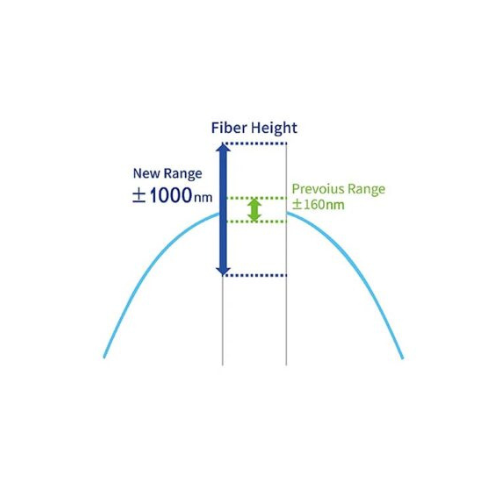

-1000nm~1000 nm Fiber Height
The new optical and mechanical design extend the fiber height range to -1000 ~+1000nm, in all testing conditions.
Auto Centering Images
BINNA 2 has auto centering image function that can find the fiber and makes it to center automatically within one click. No mouse drag or hardware adjustment is needed.
One Click Measurement
Beside of Clicking the MEASURE button, operator can press the button next to fixture to start the measurement. BINNA2 can also be configured to start the process automatically, after the fixture is detected to be locked.
Auto Focus & Auto Calibration
Applying the latest Dimension hardware and software, BINNA 2 can perform the focus and calibration automatically. No human interactive is needed in the whole measurement process.
Only 0.5s to Complete the Testing
The excellent software and hardware greatly improve the testing speed for BINNA2. It takes only 0.5s to complete the testing for single Fiber connector.
Angle Measurement of Bare Fiber Cutting
Dimensional technology integrates a variety of product measurement functions in BINNA2 based on customer requirements. BINNA2 can test the cutting angle of the optical fiber.
Concentricity Tester-Fiber Stub
The accuracy of APC angle control is 0.003° . The angle tuning is automatic with preset range from 0~12° .
Self-adapted Locking Strength
With the special designed self-adapted locking fixture, the strength to lock the ferrule is consistent. The fixture abrasion is limited and the life cycle of fixture is longer than ever before.
Stable data connection and excellent anti-vibration
BINNA2 continue to use USB3.0 cable as other Dimension interferometers did, to ensure stable and high speed data transmission at any conditions. The unique hardware design helps to maintain the stable and accurate testing result even at factory field with a lot of vibration.
Specifications
