BPD-002-OEM OEM Balanced Detector

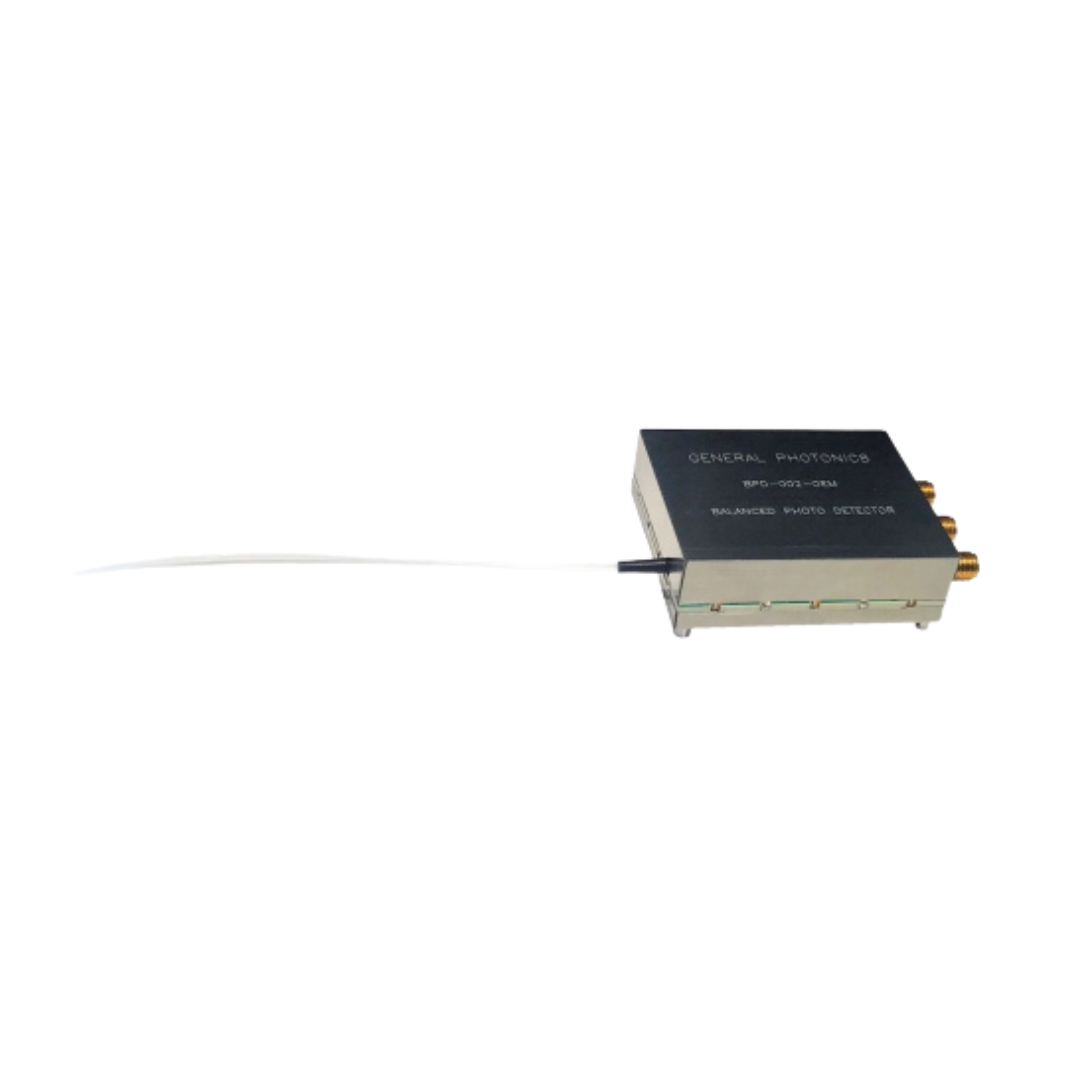

The BPD-002-OEM is a small, AC-coupled balanced detector for OEM applications.

The BPD-002-OEM has 2 optical inputs, a balanced RF output port, and two 1 kHz monitor ports. It is packaged in a small shielding box. It is AC coupled and has a bandwidth of 400 MHz.

Key Features

  • Low noise
  • High CMRR
  • AC Coupled
  • Compact

Specifications

Wavelength range
1550±50nm
Transimpedance gain
(TIA + post-amplifier)
18 × 103 mV/mA at 50Ω
Conversion gain
>14 × 103 mV / mW at 1550nm, at 50Ω
RF bandwidth (3 dB)
≥400 MHz
Coupling
AC
Lower cutoff frequency
<1 MHz
CW balanced saturation power
>120 μW at 1550nm
NEP (10-100 MHz)
<6 pW/√Hz
CMRR
> 25 dB
RF output voltage
(linear range)
±1 V at 50Ω load
±2 V at high impedance load
Dimensions
2.21” (L) × 1.81” (W) × 0.65” (H)
