Showing all 16 results
The T-Ray® 5000 is ideally suited for spectroscopic investigations. With its exceptionally long high speed delay, the T-Ray® 5000 can provide spectral resolution down to 1.5 GHz at 100 Hz. The measurement system is robust enough to be deployed in an industrial environment, but flexible enough to be used for a wide variety of experimental tasks.
The T-Ray® 5000 is the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided by our fiber coupled sensor heads in a rack mount package. By having replaceable sensor heads, the T-Ray® 5000 can be configured to fit your specific application.
Operating in reflection or transmission mode, the fiber-coupled HRS40n1 sensor heads deliver a picosecond duration time-domain terahertz pulse, allowing high speed, scanned images to be
easily produced with the T-Ray 5000 system.
The HSC50yn is designed for industrial applications that require a smaller footprint, a lighter weight or two output beams.
The HTS40n1 is a transmitter for the T-Ray® 5000, the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided by our fiber-coupled sensor heads in a rack mount package.
HTS40n2
HTS40n2
HTS40n2
The HTS40n2 Transmitter Type 2 for the T-Ray® 5000 balances high output power with high spectral bandwidth and minimizes features following the pulse to allow high quality images and detection of multiple layers in reflection with less need for post processing of the waveform.
The T-Gauge® is the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided by our fiber coupled sensor heads in a rack mount package. By having replaceable sensor heads, the T-Gauge® can be configured to fit your specific application.
The HXC55yn is a high-performance online sensor head for the T-Ray® 5000 terahertz system with full transceiver functionality.
The HXC56yn* Online Sensor Head adds functionality to the standard online sensor head (HXC55yn) with a virtual reference surface (VRS).
The HXP51y2 Online EPG Sensor Head allows measurement of thinner layers than the standard HXC55yn Online Sensor Head. With higher bandwidth, and higher signal to noise, the EPG opens new applications to terahertz process control.
The T-Ray® 5000 is the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided
by our fiber-coupled sensor heads in a rack mount package. By having replaceable sensor heads, the T-Ray® 5000 can be configured to fit your specific application.
The T-Ray® 5000 is the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided by our fiber coupled sensor heads in a rack mount package. By having replaceable sensor heads, the T-Ray® 5000 can be configured to fit your specific application.

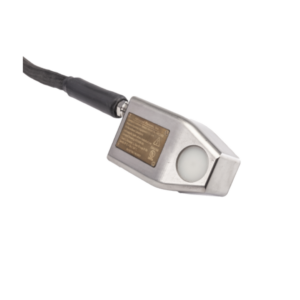

The T-Gauge Explosion Proof Thickness Measurement System (SCS530n) takes the robustness of the T-Ray® 5000 to a new level with the ability to operate in flammable atmospheres, such as paint booths or coating facilities.

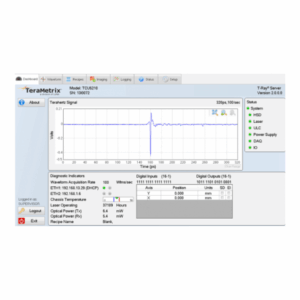

The T-Ray® Server Software is the most versatile terahertz waveform processing software available today. Built as a modular software platform, T-Ray® Server collects, analyzes, and serves terahertz waveforms and terahertz measurement data for a broad range of customer applications.

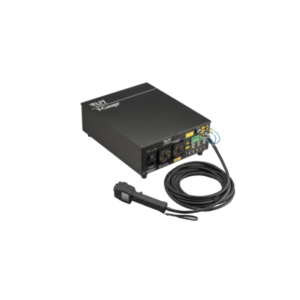

The T-Ray® 5000 SPG single point thickness measurement gauge allows direct measurement of multiple layer objects with the press of a button.
T-Ray® 5600/5700
T-Ray® 5600/5700

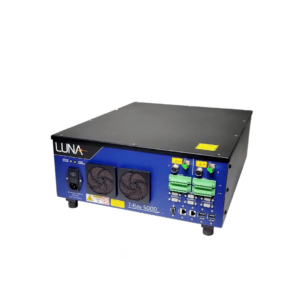

The T-Ray® 5600 is the latest model in the Luna T-Ray® 5000 platform, offering enhanced reliability, maintainability, and performance through a complete redesign of its optical subsystems and advanced electronics. It provides precise terahertz waveform control, generation, and detection for fast, accurate measurements, with processing speeds up to 1,000 times per second, making it the fastest industrial terahertz system. The T-Ray® 5700 offers the same measurement capabilities, with added cybersecurity features.
Equipped with intelligent sensors and updated control units for seamless integration with industrial automation and robotics, both models are ideal for applications such as thickness measurements, extruded shape analysis, density and basis weight measurements, and ultra-high-speed measurements of moving samples.
