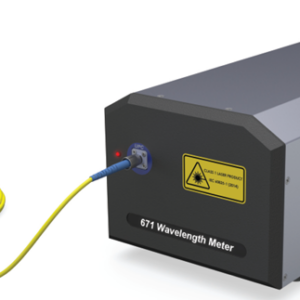

Reliable accuracy from the visible to mid-IR
- Wavelength accuracy as high as ± 0.0001 nm
- Continuous calibration with built-in wavelength standard
- Operation available from 375 nm to 12 μm
- Convenient pre-aligned fiber-optic input for wavelengths up to 2.6 μm
- Free-space aperture input with visible alignment aid for IR and mid-IR wavelengths
- Straightforward operation with PC using USB or Ethernet
- Display software provided to control measurement parameters and report wavelength data
- Automatic data reporting using custom or LabVIEW programming eliminates the need for a dedicated PC
- 5-year warranty covers all parts and labor
-

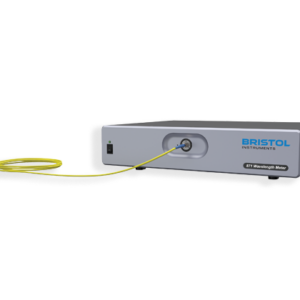

Fast, accurate, and reliable wavelength measurement for pulsed and CW lasers
- Wavelength accuracy as high as ± 0.0001 nm
- Automatic calibration with built-in wavelength standard
- Operation available from 375 nm to 2.5 μm
- Sustained measurement rate of 1 kHz
- Convenient pre-aligned fiber-optic input
- Asynchronous operation with automatic pulse detection
- Straightforward operation with PC using
USB or Ethernet
- Display software provided to control measurement parameters and report
wavelength data
- Automatic data reporting using custom or LabVIEW programming eliminates the need for a dedicated PC
- Built-in PID controller for precise laser stabilization
- Easily mounts into standard 19” rack (2U)
- 5-year warranty covers all parts and labor
-

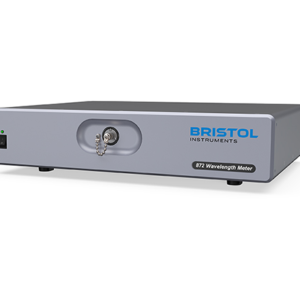

Highest resolution wavelength measurement
- Frequency resolution up to 200 kHz
- Wavelength accuracy as high as ± 0.0001 nm
- Automatic calibration with a built-in wavelength standard
- Supports calibration with an external reference laser
- Operation available from 375 to 1700 nm
- Sustained measurement rate of 1 kHz
- Straightforward operation via PC using USB or Ethernet
- Automatic data reporting using custom or LabVIEW programming eliminates the need for a dedicated PC
- Built-in PID controller for precise laser stabilization
- Optional Multi-Laser PID Controller and
Fiber-Optic Switch enable the stabilization of up to 8 lasers
- Easily mounts into standard 19″ rack (2U)
- 5-year warranty covers all parts and labor
