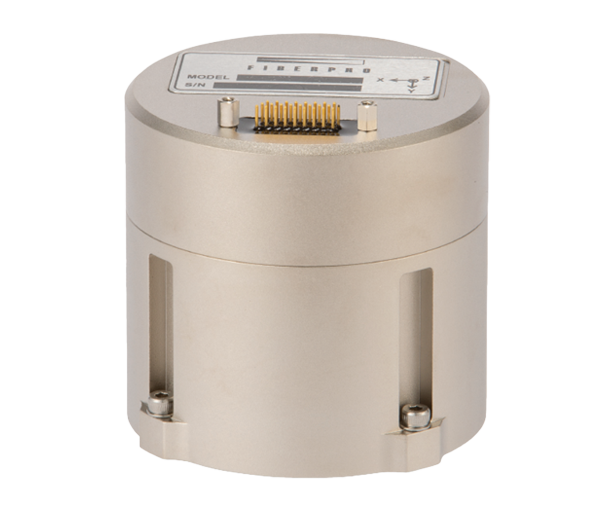

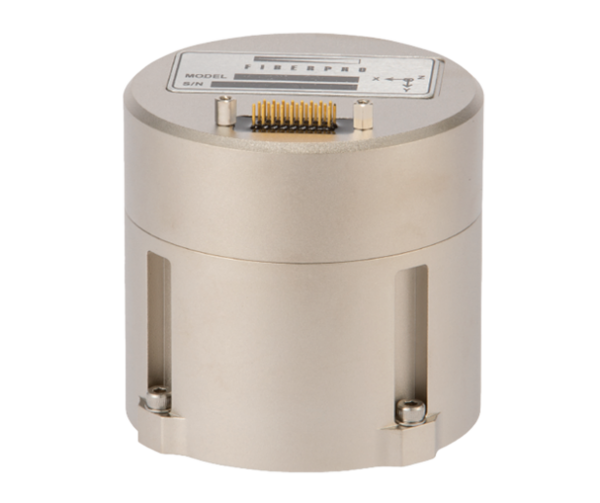

FI 200P (Inertial Measurement Unit)
- 3 axis Fiber Optic Gyroscopes / 3 axis Quartz Servo Accelerometers
- Gyro Angular Rate: > ±1,000 º/sec
- Bias Repeatability( over temp. range) : ≤ 0.5º/hr (1σ, RMS)
- In-run Bias Stability: 0.03º/hr (typical, 1σ) ≤ 0.05º/hr (max, 1σ)
- Angle Random Walk : 0.025º/√hr (typical, 1σ)
- Power Consumption: 5W @ 25℃ (< 12 W, @ – 40℃)
- Input Voltage: + 5 V, ± 15 V
- Lightweight Package: 900g (1.98 lbs)
>>Catalog<<
Description
FIBERPRO’s FI200P is a fiber-optic gyroscope (FOG-based) Inertial Measurement Unit, with higher performance parameters compared to the FI200C. This model is suitable for applications requiring heightened accruacy and performance in various navigation-grade operations. The biggest specification difference lies in its exceptional gyro and accelerometer operating range which allows the FI200P to be capable of applications into stricter defense or aerospace applications.

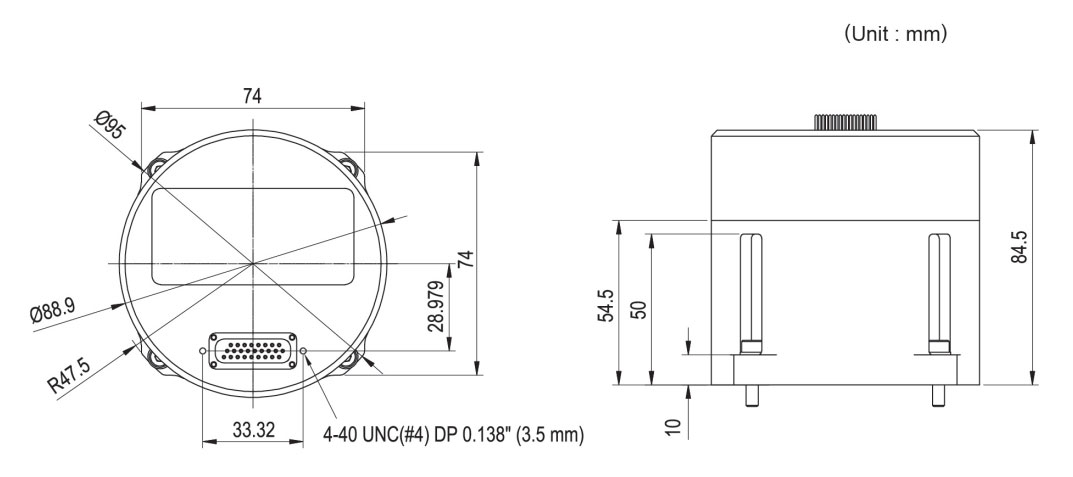

Dimensions
Application
- Unmanned Aerial Vehicles
- Camera / Radar Stabilization
- Guidance / Flight Control
- Antenna Stabilization
- Motion Compensation
- Attitude and Heading Reference Systems (AHRS)
