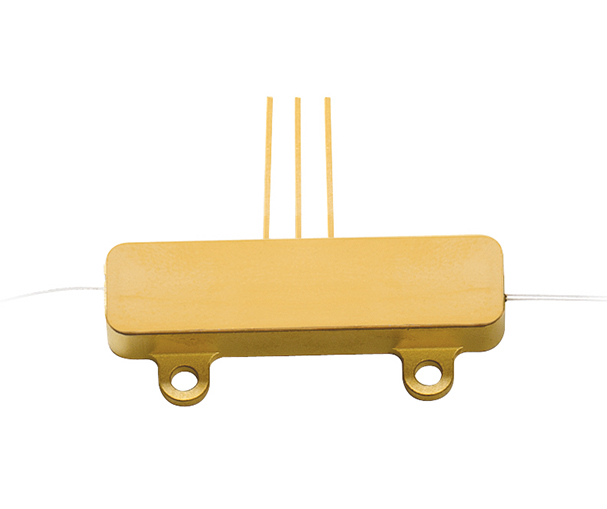

MD1000 (Polarizing Y-branch Phase Modulator)
- Low intensity modulation : 0.1%
- High PER : ≥ 60 dB
- Low Insertion Loss : ≤ 2.5 dB
- High Return Loss : ≥ 55 dB
- Low Vπ : ≤ 4.0 V
>>Catalog<<
Description
FIBERPRO’s Polarizing Y-branch Phase Modulator (PPM), the MD1000, is a high performance optical component specially designed for Fiber Optics Gyroscope(FOG) applications. It offers extremely low intensity modulation (0.05%), insertion loss and return loss, and can perform in harsh environments.

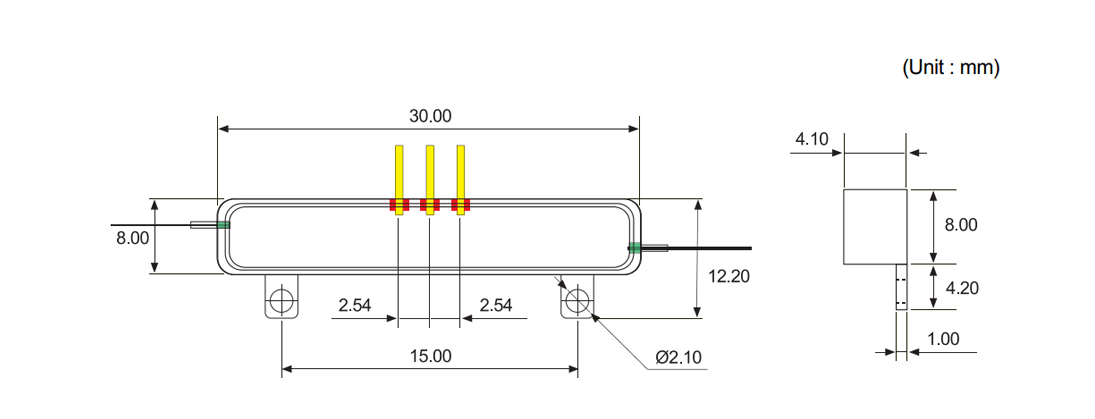

Dimensions
Application
- Fiber Optic Gyroscope
- Sagnac Interferometer-based Sensors
