OS1100 & OS1200 : Fiber Bragg Gratings
FBGs are the fundamental elements upon which most fiber optic sensors are based. An FBG is an invisible reflector inside the core of the fiber that is set to a specific wavelength of light. When the fiber where an FBG is located is exposed to strain or temperature, the FBG’s “center wavelength” shifts to a higher or lower wavelength. The direction and magnitude of the shift is proportional to the change in strain or temperature.

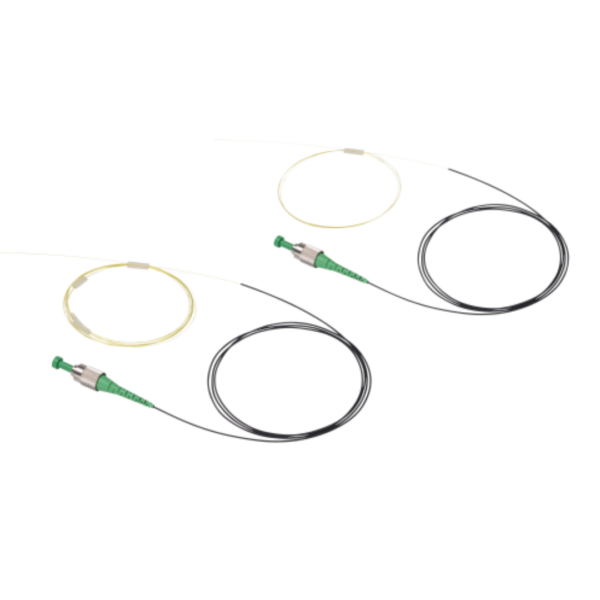

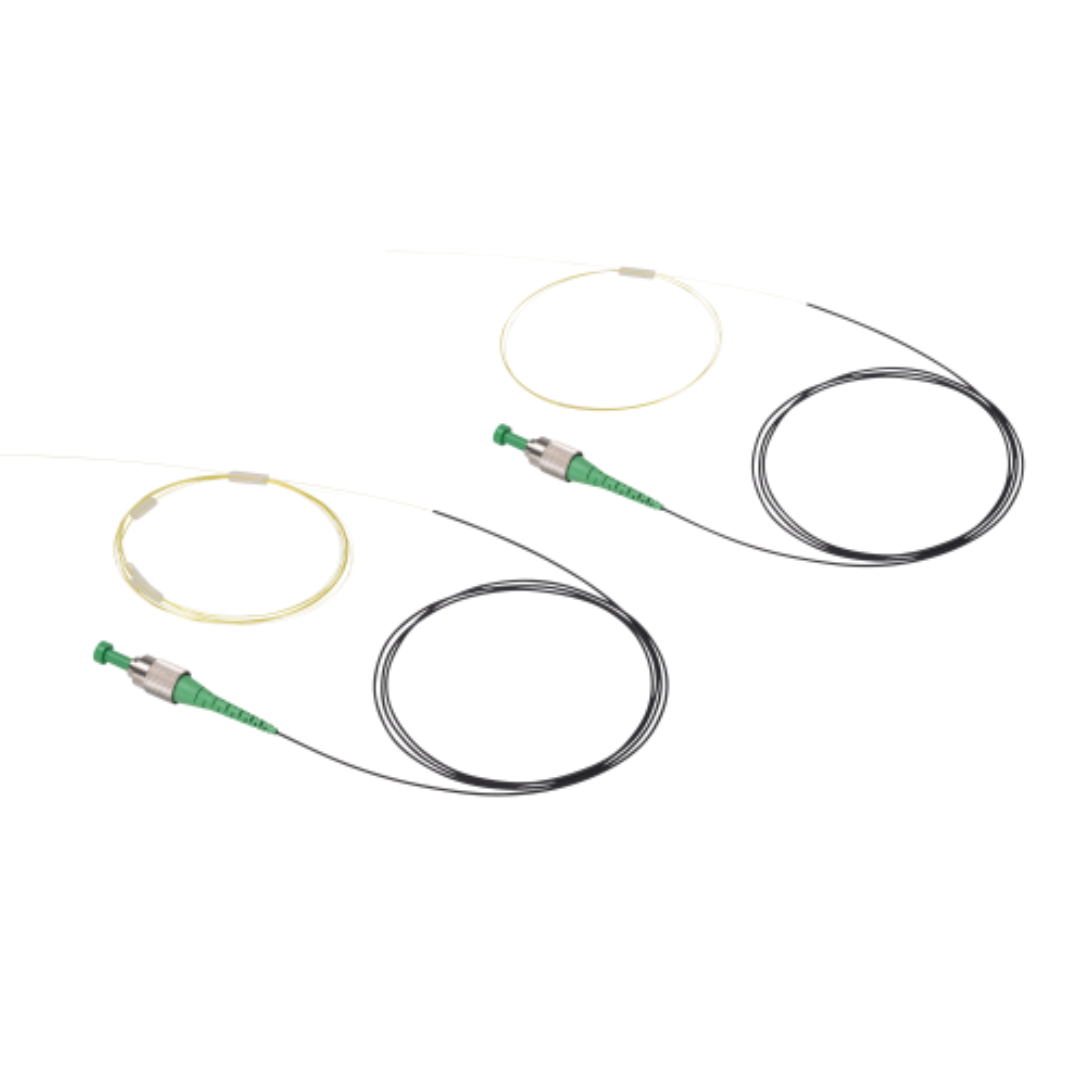

Each os1200 is built with five FBGs at standard center wavelengths, spaced at one-meter intervals. The os1100 is a single FBG on a 2 m fiber. One or two FC/APC connectors, and loose buffer tube protection, are available as packaging options.
os1100’s and os1200’s are used in applications ranging from basic experiments with FBGs to the construction of complex transducers containing one or more FBGs. The polyimide coating provides excellent transfer of strain through the fiber coating to the FBG in the fiber core. Polyimide also performs well over a wide temperature range. The splice free array provides a convenient way to take advantage of the multiplexing capabilities of FBGs.
Key Features
- Optional FC/APC connector and loose buffer tube for ease of handling
- Clearly marked FBG locations
- Splice-free array
- Non-metallic construction
Specifications
os1100 , os1200
- Number of FBGs:
- 1 (os1100)
- 5 (os1200)
- FBG spacing:
- – (os1100)
- 1 m ± 50 mm (os1200)
- FBG length:
- 10 mm
- Fiber lead length:
- 1 m (±10 cm), each end
- Strain sensitivity:
- ~ 1.2 pm/με
- Operating temperature range:
- -40 to 120 °C
- Fiber coating:
- Polyimide
