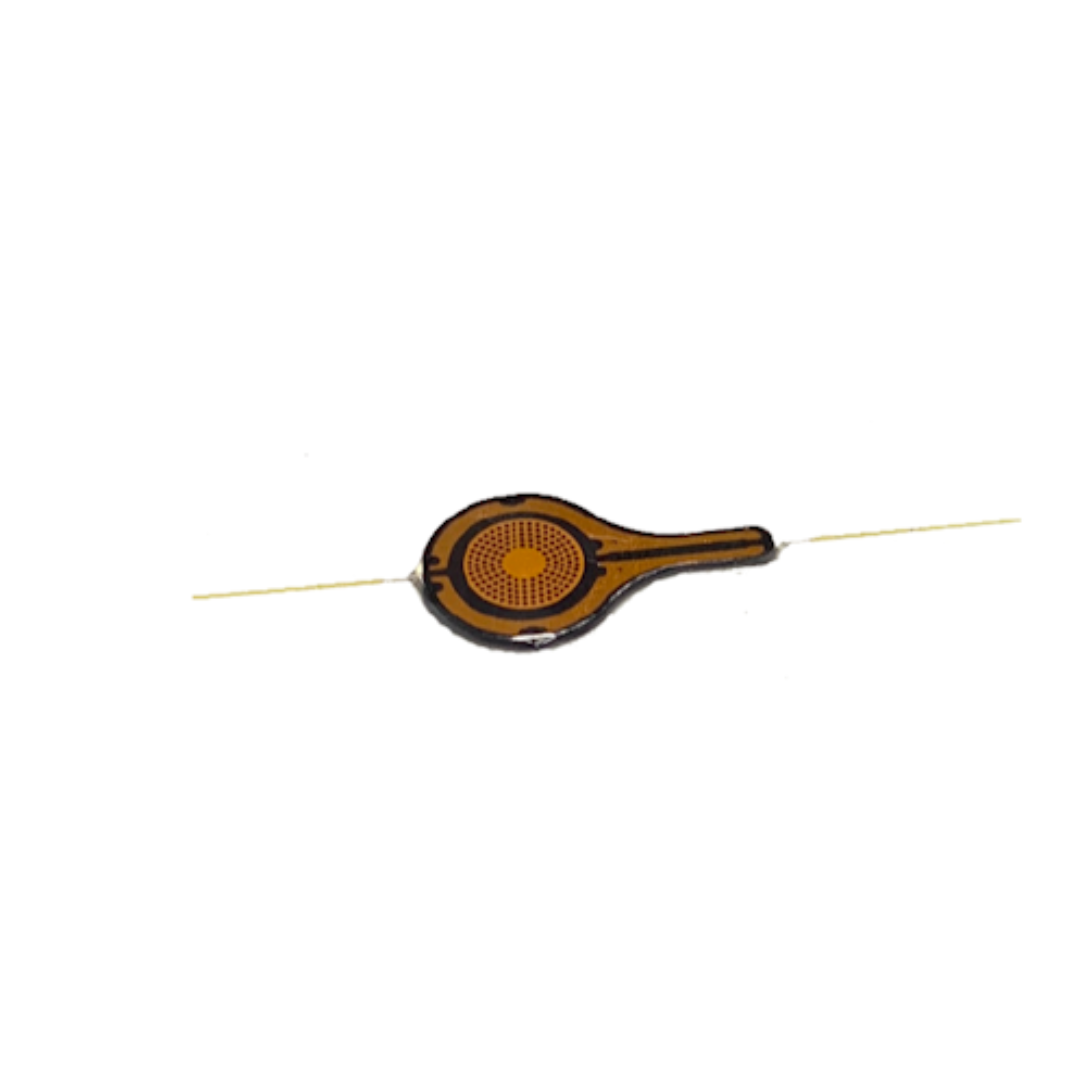

os9100 Optical Pressure Sensor

The Luna os9100 Series consists of low-profile fiber Bragg grating (FBG) pressure sensors for static and dynamic measurements. Unlike many conventional pressure-monitoring systems that are limited to approximately 16 sensors, more than 300 os9100 sensors can be integrated with Luna’s HYPERION platform, enabling dense pressure measurement across distances of up to 10 km.

The os9100 Series uses fiber Bragg grating technology to detect small changes in pressure while operating on the same HYPERION platform as Luna sensors for strain, temperature, displacement, and acceleration.

Installation is designed to be simple and repeatable using a self-adhesive mounting method. The os9100 Series supports pressure ranges from -2,000 to 4,000 Pa for the os9110 and from -3,000 to 13,000 Pa for the extended-range os9120, with resolution down to 2 Pa when averaging is applied.

The os9100 Series is compatible with Luna’s ENLIGHT Sensing Analysis Software, which provides tools for data acquisition, computation and analysis of optical sensor networks. Developers can also use the HYPERION platform’s application programming interface and examples written in LabVIEW, Python, MATLAB, C++ and C#.

Key Features

Simple, repeatable self-adhesive installation
Low-profile multipoint sensing with up to 304 sensors on one HYPERION instrument
Static and dynamic pressure measurement 1 to 5kHz range
Multiparameter monitoring on the same instrumentation platform
Measurement distances up to 10 km

Specifications

	os9110	os9120 Extended Range
Measurement Type	Temperature compensated, static and dynamic pressure		Temperature compensated, static and dynamic pressure
Measurement Range	-2,000 to 4,000Pa	-3,000 to 13,000Pa
Resolution	40Pa at full 1,000Hz data rate, 2Pa with 1,000 averages		40Pa at full 1,000Hz data rate, 2Pa with 1,000 averages
Measurement Distance	Up to 10km		Up to 10km
Measurement Points	Up to 304 with 16 channel si255, 19 sensors per channel		Up to 304 with 16 channel si255, 19 sensors per channel
Wavelength Options	1512, 1516... 1588nm in 2 nm interval (Custom options for 1460 to 1620nm)		1512, 1516... 1588nm in 2 nm interval (Custom options for 1460 to 1620nm)
