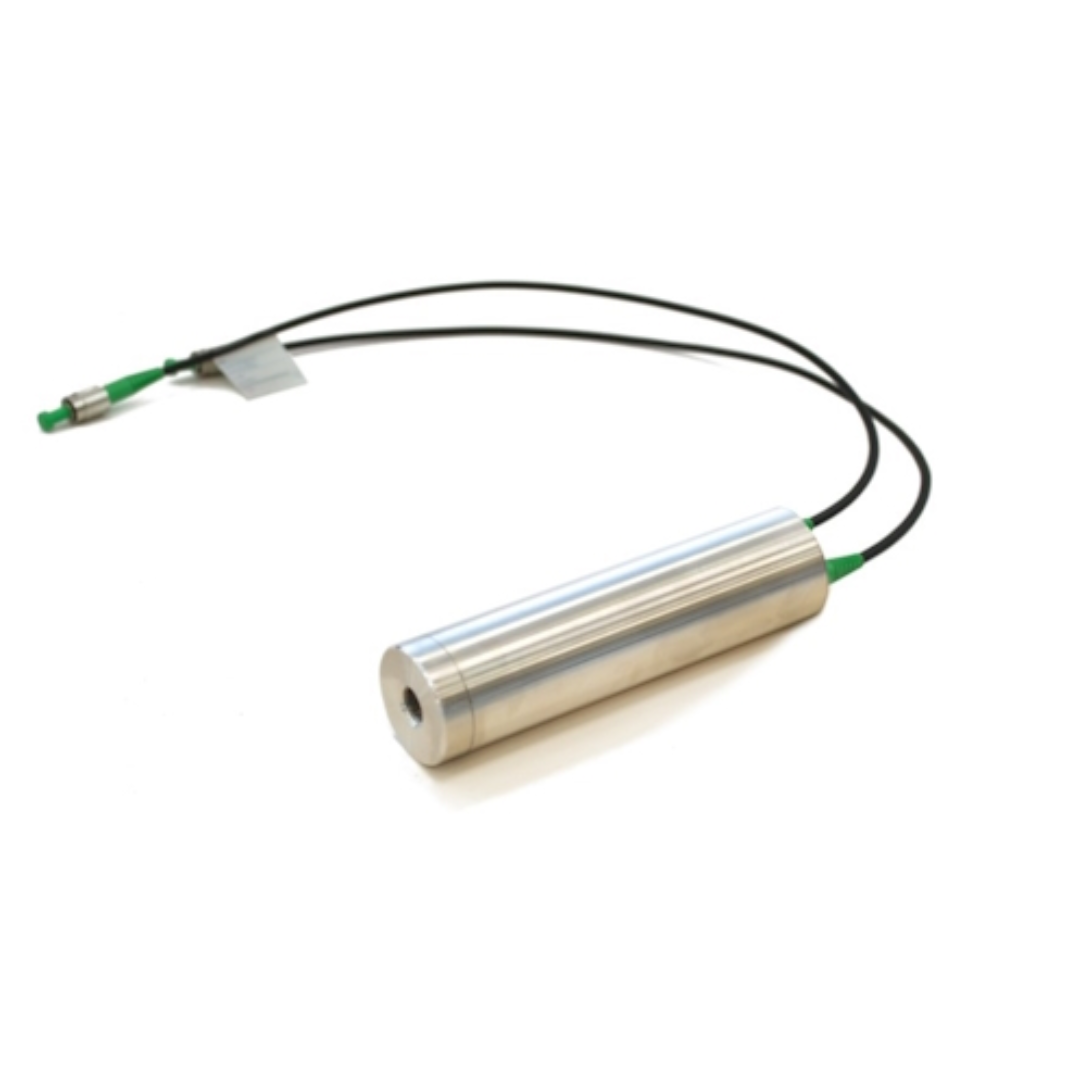

OS9200 : Optical Pressure Sensor
The os9200 features a novel approach to pressure sensing for both liquid and gaseous environments, utilizing FBG technology to measure minute changes in pressure. The sensor features a pressure range of 0-100 bar and a resolution of down to 0.1% full scale.
Up to 96 os9200 sensors can be integrated on a single HYPERION interrogator platform, and can also be combined on the same optical network with other FBG sensors to simultaneously capture other parameters, such as temperature, strain, displacement, acceleration, tilt, etc.
The os9200 sensors are compatible with ENLIGHT Sensing Analysis Software, an integrated suite of tools for data acquisition, computation and analysis of optical sensor networks, as well as with the HYPERION’s comprehensive Application Programming Interface (API) and examples written in LabVIEW, Python, Matlab, C++ and C#.
Key Features
- Simple and repeatable installation
- Rugged (IP67) multipoint monitoring with up to 96 sensors on a single HYPERION instrument
- Ultra high resolution
- Multiparameter various physical parameters measurements coupled onto the same instrumentation platform
- Internally temperature-compensated
Specifications
os9200 Pressure Sensor
- Measurement Type:
- Pressure, with temperature-compensation
- Measurement Range:
- 0 to 100 bar
- Resolution:
- 0.1% of full scale
- Accuracy:
- <1% of full scale
- Measurement Points:
- Up to 96 with 16 channel si255; 6 sensors per channel
- Pressure inlet port thread:
- G 1/8th
