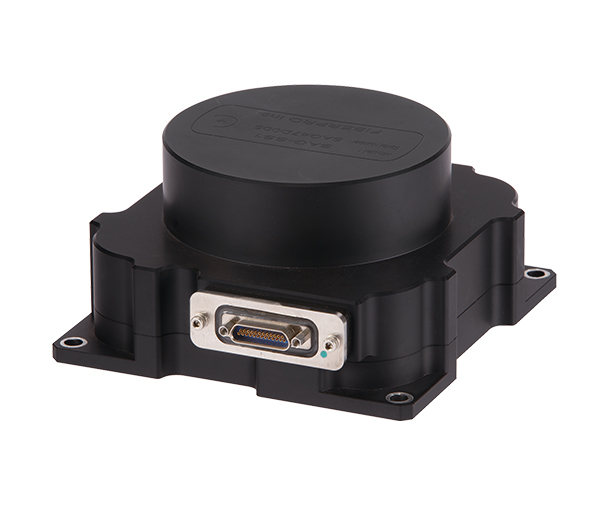

SAG-SS (Single Axis Fiber Optic Gyroscope for space grade)
- 1 axis Fiber Optic Gyroscopes
- Bias Repeatability: 0.1°/hr
- Bias Stability: 0.02 °/h (1,000 sec)
- Angle Random Walk: 0.005 °/√hr
- Scale Factor Accuracy: 500 ppm
- Operating Voltage: 5 V (1 A)
- Interface: RS422
- Weight: 1.0 kg
- EMC: MIL-STD-461E
>>Catalog<<
Description
The SAG-SS is a high performance space-grade fiber optic gyroscope with one axis satellite measurement of the rotation with a very high reliability level. One box includes one gyro composed of interferometer, and its relevant electronics. The SAG-SS is designed to operate with the worst radiation environment. The SAG-SS uses low power consumption requiring single voltage at 5V and is fully compliant to MIL-STD-461E.
Application
- Satellite
