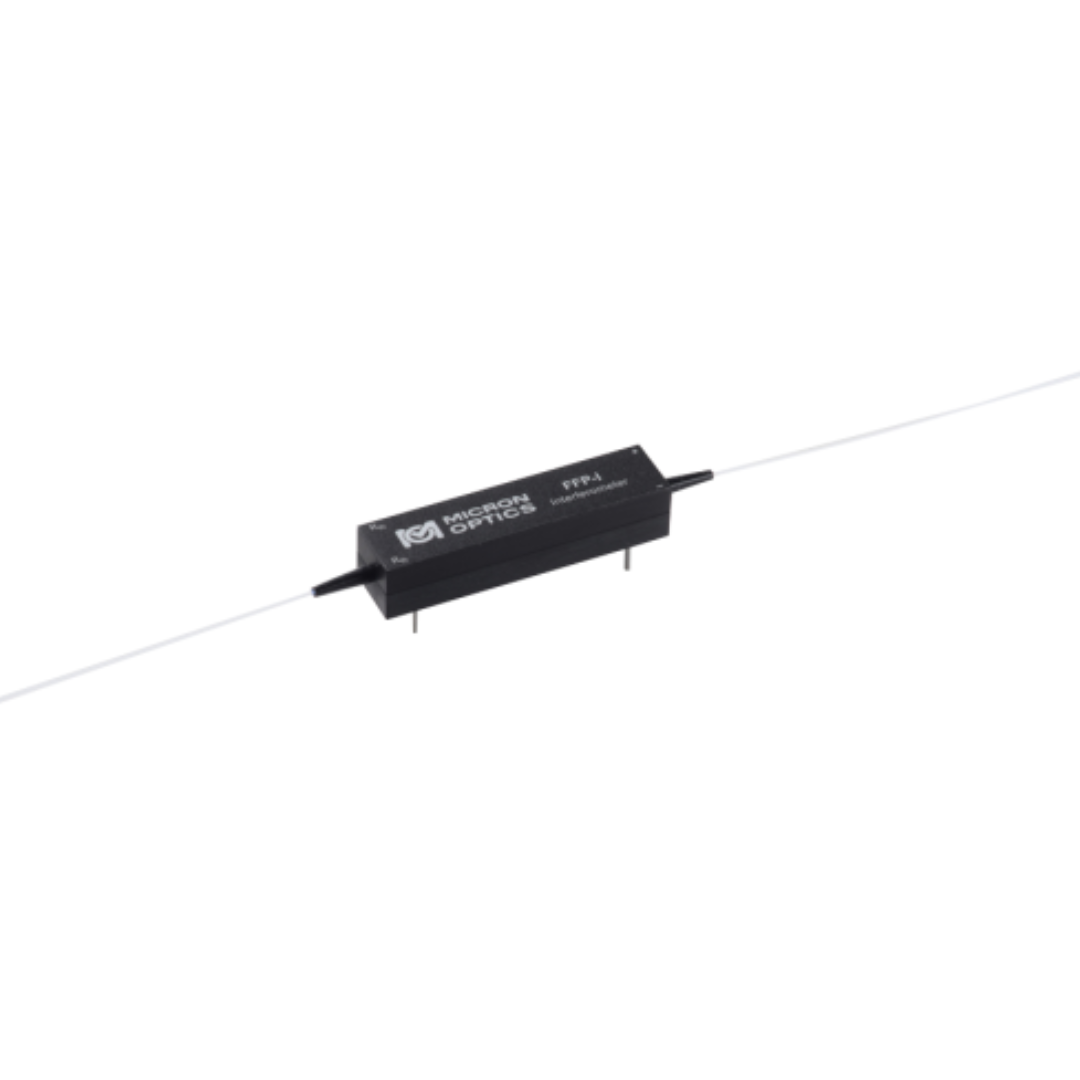

FFP-I Fiber Fabry-Perot Interferometer
The Fiber Fabry-Perot Interferometer (FFP-I) family of products is based on a fixed interferometer design with smooth, uniformly spaced transmission peaks.
The FFP-I consists of a lensless, plane Fabry-Perot Interferometer with a single-mode optical fiber waveguide between two highly reflective multilayer mirrors. The FFP-I is manufactured directly with optical fibers so no alignment or mode-matching is required. The free spectral range (FSR) may be manufactured exactly to customer specifications and a TEC package is available for thermal stability and minor adjustments of center bandpass frequency.
The picoWave® is Luna’s’ patented multi-wavelength reference that enables real time wavelength calibration to picometer accuracy. Combining the uniform frequency spacing of the FFP-I, a wavelength marker of a Fiber Bragg Grating, and a built-in TEC for thermal stability, the picoWave® makes an ideal calibrated wavelength reference.
Key Features
Specifications
Operating wavelength | 1260 -
1620 nm |
Free spectral range | 0.01
to 10,000 GHz |
Finesse | 10 to
2,000 |
Insertion loss | <3
dB |
Maximum input power | 100 mW
(for finesse <200) |
Thermal coefficient | ~1.6 GHz/C |
