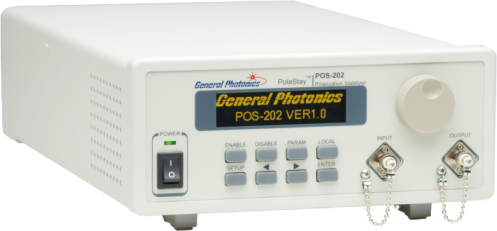

POS-202 Polarization Stabilizer
The POS-202 Polarization Stabilizer maintains stable output states of polarization (SOP) against input SOP fluctuations.
The POS-202 architecture includes a fiber squeezer polarization controller, in-line polarization monitor, and proprietary algorithms. They are able to compensate for an input polarization discontinuity in as fast as 5 ms, or track without resets against a continuous input SOP rotation of up to 32π/s.
The POS-202 is a simple instrument that stabilizes the output SOP to linear, aligned to the slow axis of its output PM fiber
Key Features
Specifications
Wavelength range | 1550, 1310, or 1060±50 nm |
SOP recovery time | <5 ms (1.5 ms typical) |
SOP rotation tracking speed | 32π/s |
SOP accuracy | <0.1 dB (PM output fiber, after polarizer) |
Isolation in orthogonal polarization | 20 dB |
Insertion loss (IL) | <1.2 dB (POS-202) |
