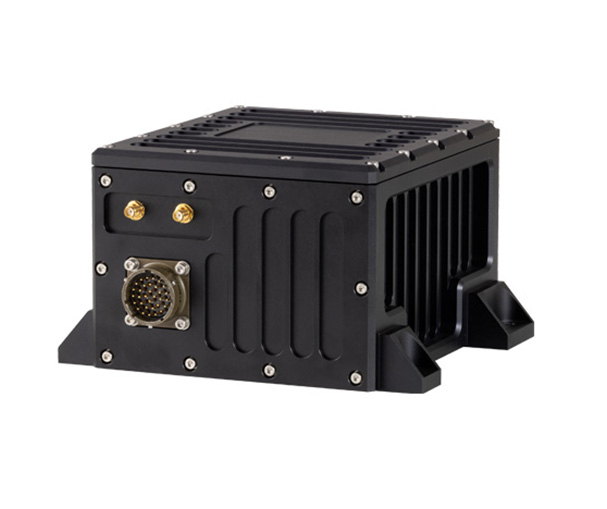

FN 205 (INS/GNSS Receiver)
- Heading Accuracy: 0.5° · sec(LAT)
- Roll & Pitch: 0.1° RMS
- Operating Voltage: 9 to 36 VD
- Data Output Rate: Up to 200 Hz
- Operating Temperature: -20°C to +55°C
- Weight: 3.5 kg
- Interface: RS-422
>>Catalog<<
Description
FIBERPRO’s Inertial Navigation System, FN 205G, provides accurate heading, attitude, and positional data for navigation and attitude reference applications. It is ideal for customers seeking a cost-effective and reliable solution for navigation and control in commercial and defense fields. FN 205G integrates a high-accuracy FOG-based IMU with a GNSS receiver, with the option to combine it with Anti-jamming GNSS for enhanced resilience in contested environments. It supports inertial navigation, AHRS, stabilization, guidance, and motion sensing across a wide range of applications. The system consists of three axis fiber optic gyros, three axis Quartz Servo accelerometers, and a strap-down processor. It provides heading, attitude, position, altitude, and more, which can be transferred via RS422 (UART) at up to 200 Hz.
Application
- Unmmand Aerial Vehicle(UAV)
- Guided Weapon System
- Surface Vessel
