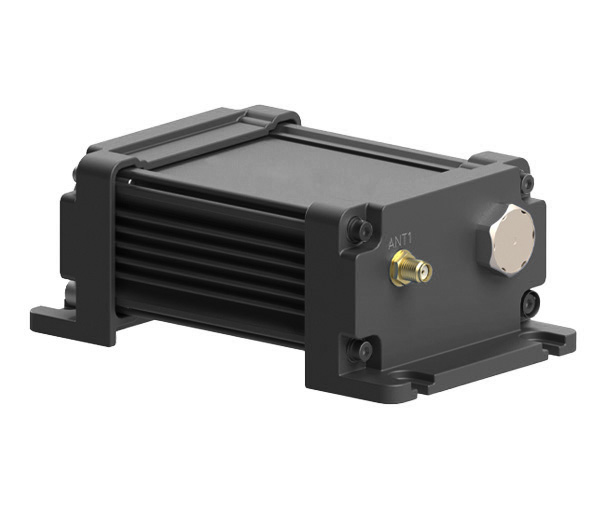

GF1000 Series (GNSS/INS Receiver)

  • Multi-constellation, Multi-frequency GNSS support: GPS L1(C/A), L2(C),GLOBASS L1(C/A), L2(C),Galileo E1, E5b, BeiDou B1l, B2l, NavIC L5, S-band
  • Position Accuracy: 1.1m(H), 1.8m(V) (Standalone)
  • GNSS Angle Accuracy: Roll: 0.15 deg, Pitch: 0.15deg, Heading: 0.06deg
  • GNSS Output Data Format: NTL Binary (up to 20Hz)
  • Interface: PPS out, RS422, Ethernet
  • Power consumption: up to 8.0W
  • Weight: < 550g
  • Operating temperature range:
    – 40℃ to +71℃
    – 40℃ to +85℃ (industrial)

Description

The products line is represented by the high performance multi-constellation multi-frequency GNSS Receivers that are capable of PPP, RTK, INS Engines, offering flexible positioning capabilities and expanding the application area: from standard accuracy GNSS Receiver to high performance high accuracy GNSS-Aided INS Receiver (GNSS+INS Receiver).

Dimensions
Dimensions: 141mm x 81mm x 51mm



Application

  • Unmmand Aerial Vehicle(UAV)
  • Drone
  • Guided Weapon System
