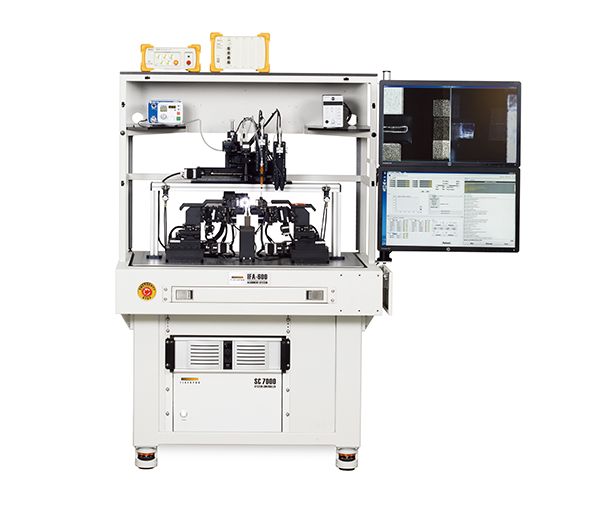

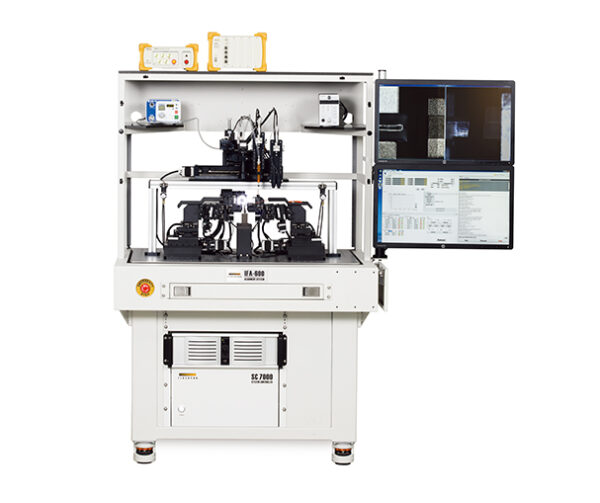

IFA-600 (Auto Alignment / Bonding System)
- Automatic alignment with excellent repeatability based on optimized alignment algorithms and precision stage control
- Automatic gap control and angle alignment using a precision displacement sensor
- Quick input port alignment with multimode fibers
- Fast initial alignment based on vision processing and 2D scanning algorithm
- Convenient graphic user interface (GUI) and versatile functions for data management
- Remote controlled via user software
- Compact mechanical design
Description
FIBERPRO’s Auto Alignment System, the IFA-600, is a self-aligning device for a variety of optical devices (PIC devices, Splitter, AWG, VOA, IOC, Colliomator, etc.) that require measurement and packaging to meet the user’s requirements. It can overcome the limitation of the quality level of existing manual and semi-automatic sorting methods which is highly dependent on the user’s skill, and makes possible a faster and more stable arrangement of optical devices by using various high-level sorting algorithms and an optimized power meter.

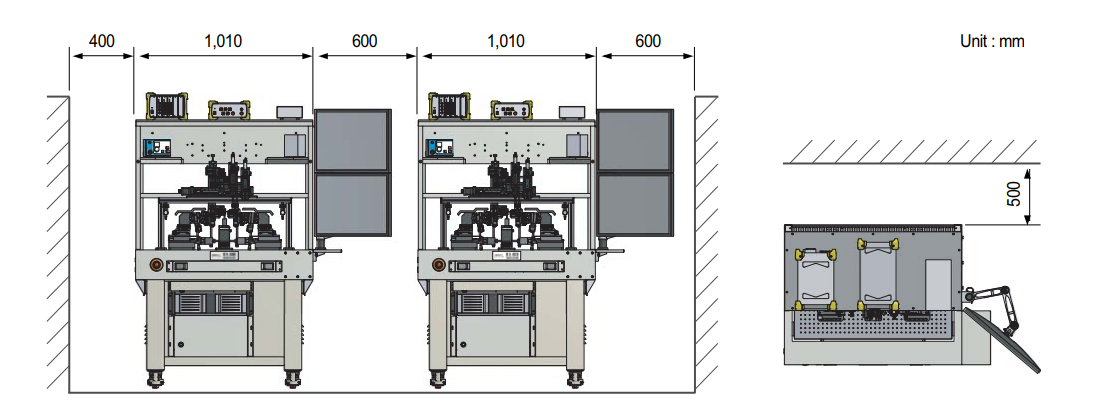

Dimensions
Application
- Photonic Intergrated Circuit (SiP devices)
- Integrated Optical Circuit (LiNbO3 chip)
- VOA (Variable Optical Attenuator)
- AWG (Arrayed Waveguide Gratings)
- PLC Splitter
- Collimator
- Other optical devices
