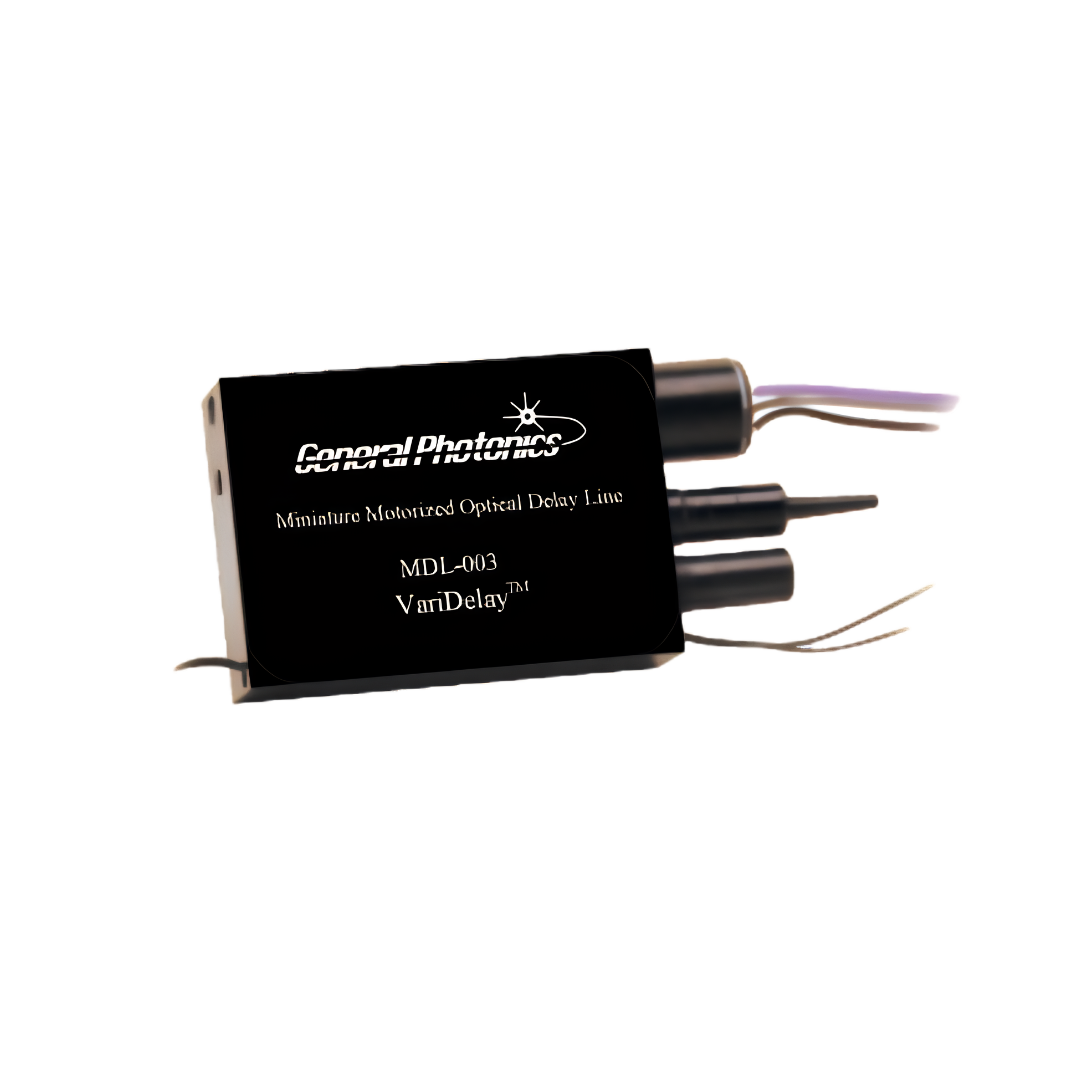

MDL-003 Miniature Motorized Variable Optical Delay Line
The MDL-003 is a small motorized delay line for OEM applications. It uses a stepper motor and dual position sensors for precise delay control.
The MDL-003 is a fiber coupled delay line with the delay adjustment path in free space. It is designed for OEM applications that require continuous scanning capability and a small footprint. The standard device has a delay range of 100 ps. An internal mirror can also be installed to cause light to double pass the device, doubling the delay range. It uses a stepper motor and two position sensors for delay control. The single-pass version is available with SM or PM pigtails.
Key Features
Specifications
Center wavelengths (λc) | SM, single pass: 1310/1550 dual window, 1060, or 840nm PM, single pass: 1310, 1550, 1060, or 840nm |
Wavelength range | λc ±50nm |
Optical delay range | Single-pass:
100 ps Double-pass: 200 ps |
Optical delay resolution | 30µm,
single pass at maximum speed |
Optical delay accuracy | ±40µm,
single pass at maximum speed |
Optical delay repeatability | ±40µm,
single pass at maximum speed |
Actuation speed | 50
ps/s max (single pass) |
IL | 1.0 dB
(1310/1550nm single pass) |
IL variation over delay range | ±0.3
dB (1310/1550nm single pass) |
