Fiber Pro

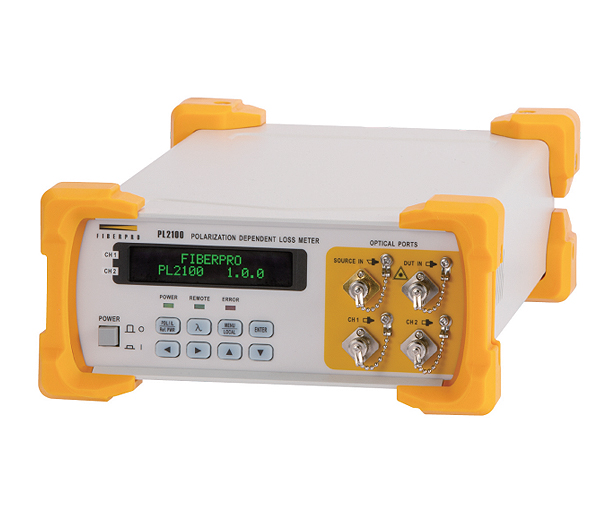

PL2100 (Polarization Dependent Loss (PDL) Meter)

  • Acquires PDL and IL measurements simultaneousty
  • The fastest measurement speed (0.01 sec./point Max.)
  • Polarization scanning method (All-states method)
  • No calibration needed
  • Not sensitive to fiber lead movement
  • Two output channels
  • Optical power meter function
  • External trigger function
  • GPIB, RS232 and TCP/IP



>>Catalog<<

Description

FIBERPRO’s Polarization Dependent Loss Meter, the PL2100, measures Polarization Dependent Loss (PDL) and Insertion Loss (IL) of 1×1 and 1×2 optical components simultaneously as a function of wavelength (wavelength-swept measurement). In addition, optical power measurement function is provided. In fiber optic communication systems, Polarization Dependent Losses of components can increase signal distortion and result in performance degradation. Therefore, for fiber optic component manufacturers, accurate and efficient PDL measurement is very important. FIBERPRO’s powerful PDL measurement method – fast polarization scanning (TIA/EIA-455-157) – enables PL2100 to achieve very high accuracy with the world’s fastest measurement speed. The PL2100 is an ideal solution for measuring PDL and IL of DWDM components efficiently and accurately.



Dimensions

234mm x 450mm x 108mm (with rubber cushions)



Application

  • Optical passive component qualification and testing
  • Characterization of PDL dependency versus wavelengt
