- Fiber patchcord and connector performance test
- Other optical passive device performance test
Platform + module design, high scalability

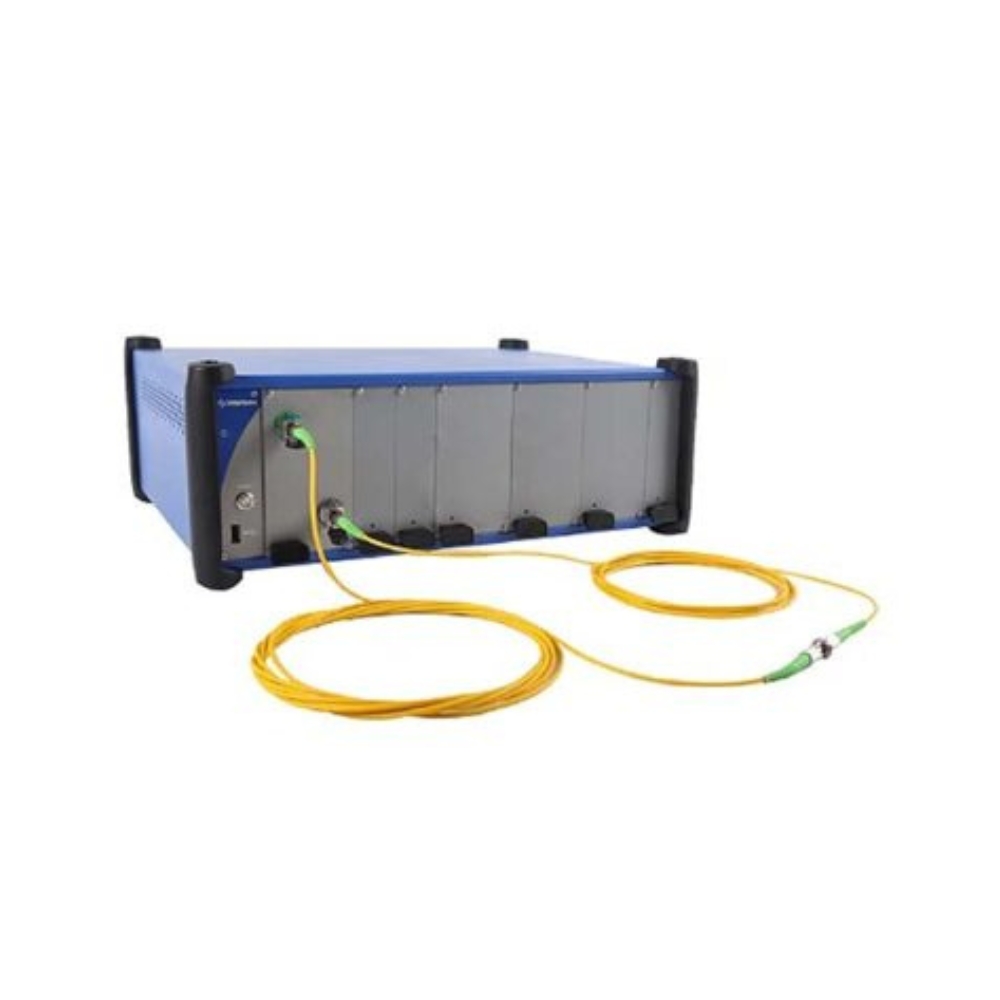

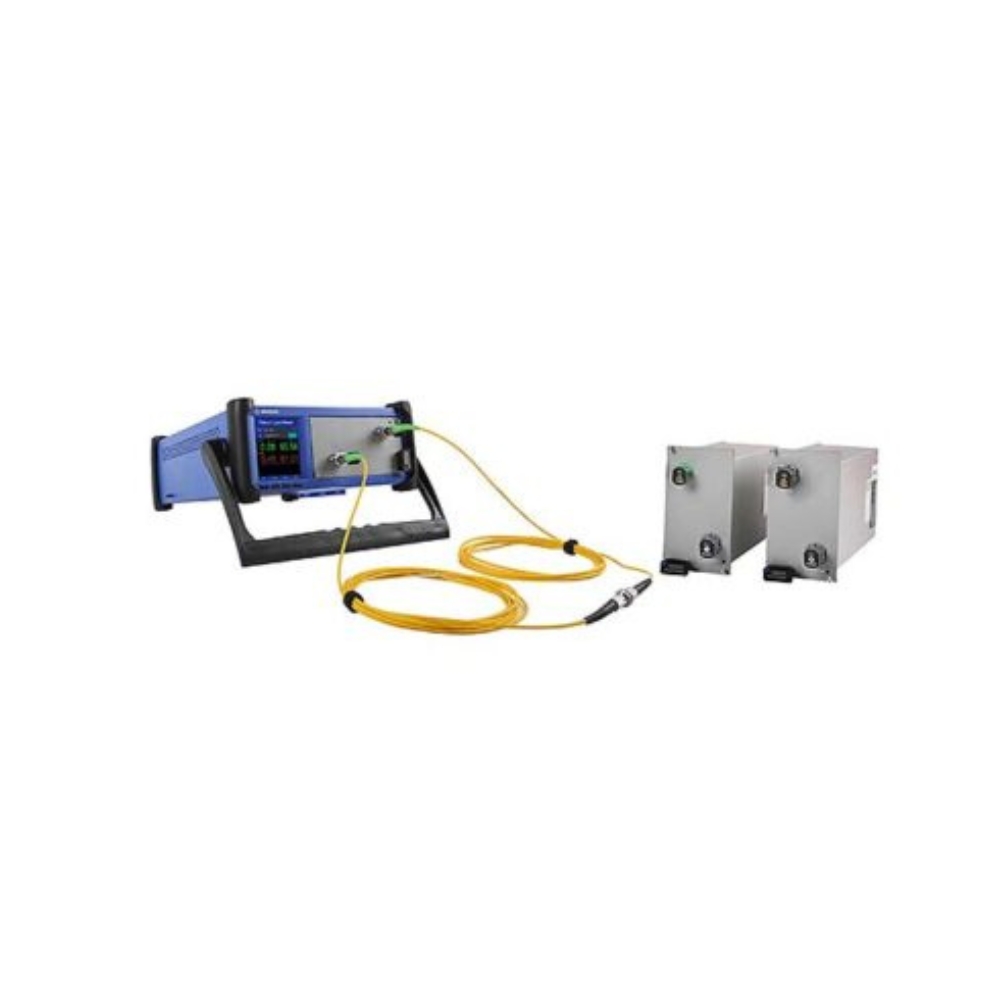

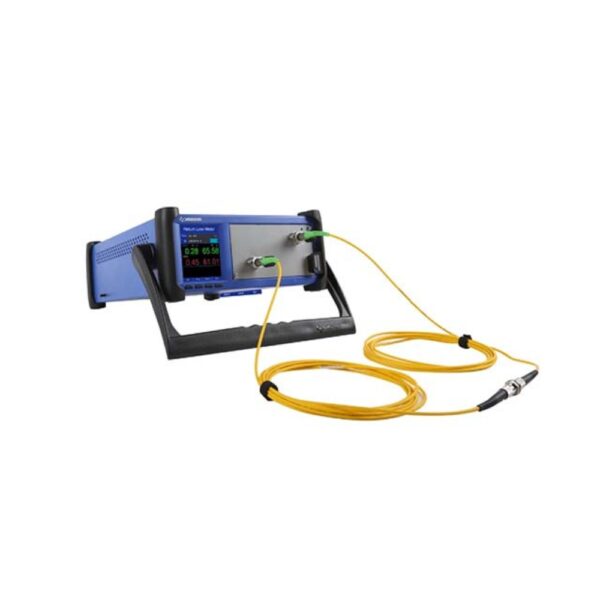

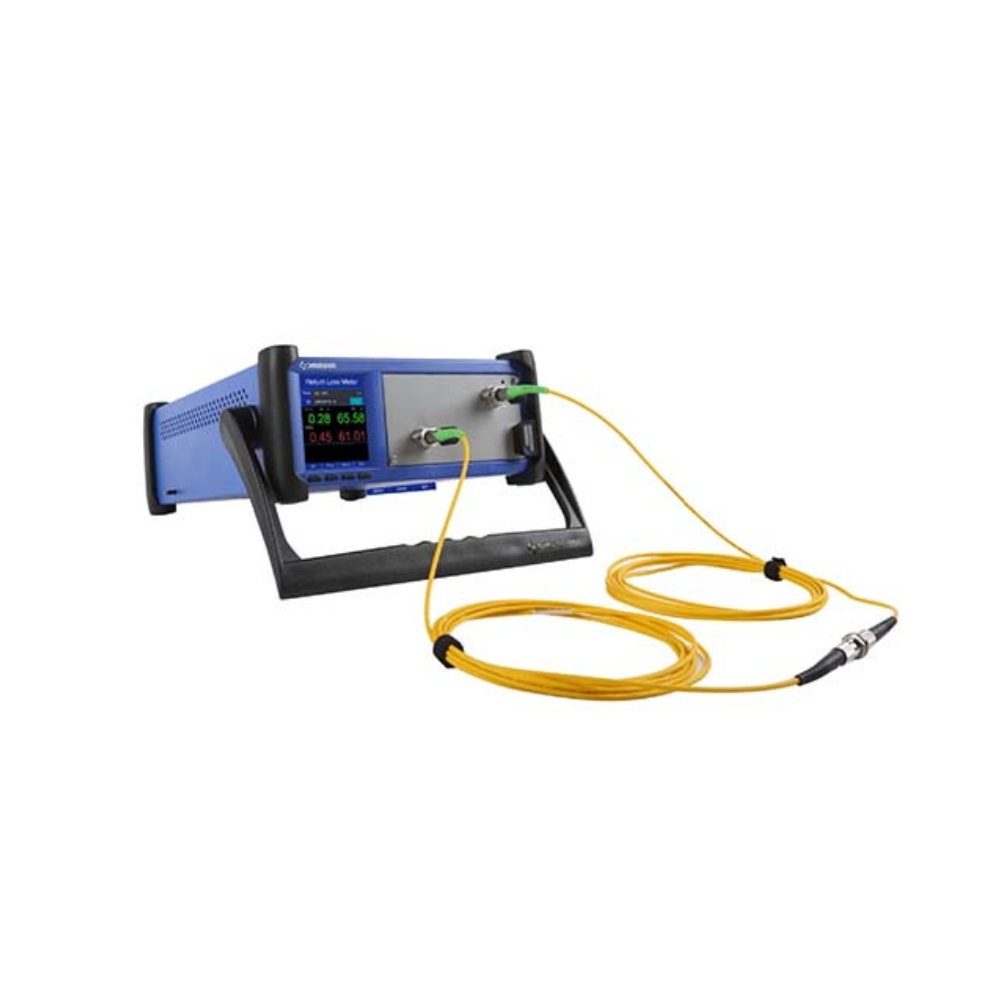

Dimension’s universal optical test platform provides a whole set optical test solution, it includes a dual-slot ALPHA test platform and an 11-slot OMEGA test platform, which is compatible with a wide range of functional test modules such as IRL test module. With hot swappable, programmable, and scalable, easy to maintain&manage, with low overall cost.
Supports many remote control modes, including network, USB, touch screen and physical button , etc. users can integrate and expand different functional modules in following-up, such as optical switches, stable light sources, POA testers, BER testers, and high-speed optical power meters, to achieve one-stop test for optical devices and other products’ various performances.
RL mandrel-free test, dual wavelength test speed less than 1s
Based on the principle of optical time domain reflection(OTDR) detection, the return loss test is realized without winding. The integrated design test module can realize insertion loss and return loss testing simultaneously. Using high speed sampling circuit and algorithm optimization, the speed of dual wavelength test is less than 1s.
RL minimum detectable down to -75dB(single fiber, single mode), Minimum measuring fiber length 0.7m
Using the dimension self-developed high-sensitivity detection circuit and the optimized software algorithm, RL can achieve the detection of -75dB(single fiber single mode), which can meet the detection requirements of high-performance single mode patchcord (SM/APC).
Erich interchangeable, high reliability detector adapter
To meet the needs of customers, dimension has developed a series of interchangeable, high reliability detector adapter, that are flexible and convenient to use. Optimized integrating sphere, compatible with MPO/ duplex LC adapters, no need to repeatedly plug and plug in one test.
Auto save test data + report
Users can customize the test report, can automatically save, upload test data and report to the server.
Detector Adaptors Selection Guide
