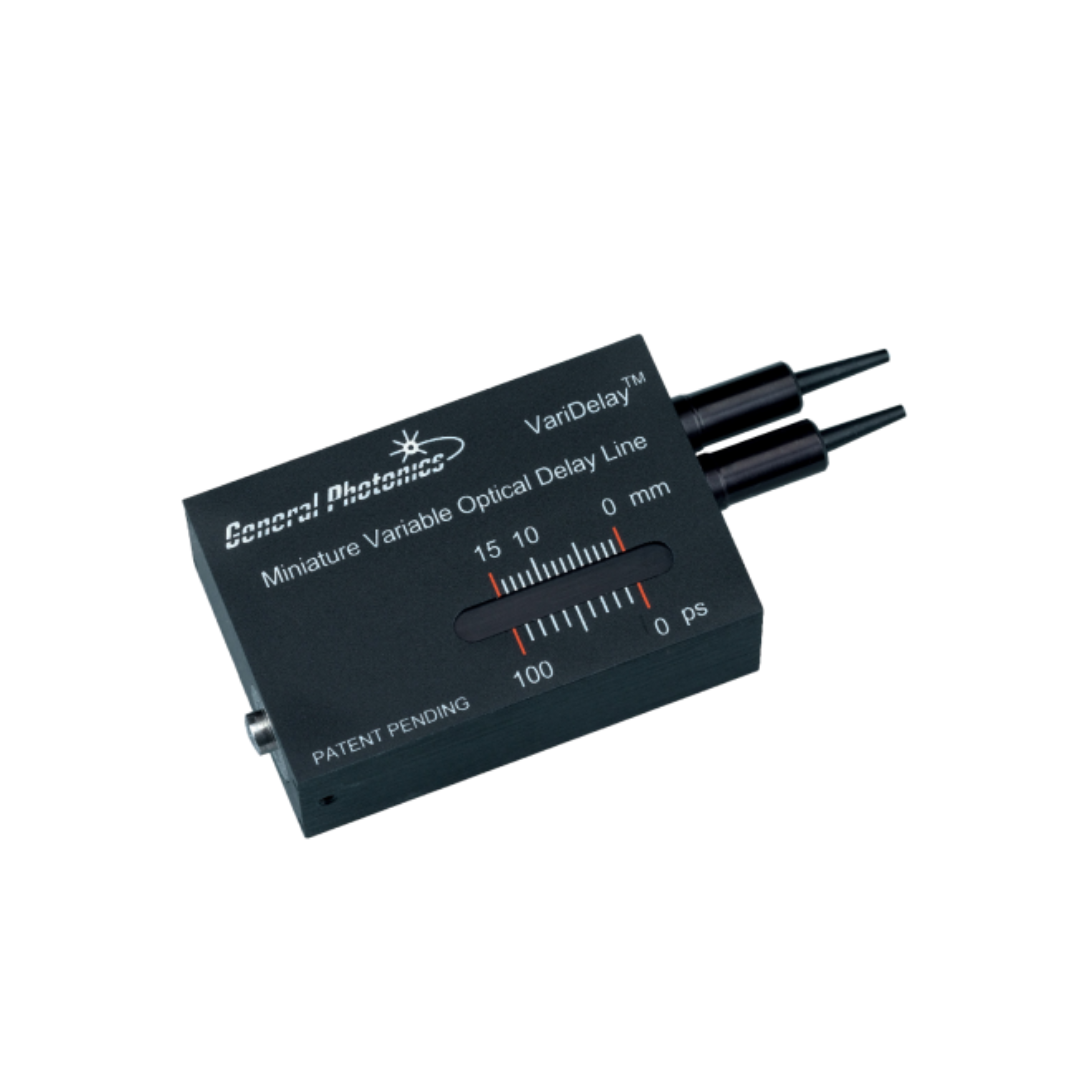

VDL-002 Manual Optical Delay Line
The VDL-002 family of manual variable optical delay lines are small, shorter range delay lines that allow a user to adjust the delay to a desired position and then lock it in place.
The VDL-002 is a fiber coupled delay line with the delay adjustment path in free space. The delay is adjusted by manually turning a screw on one end of the device, and position is read from a scale on the side. The device includes a locking screw to lock the position setting. It is enclosed in a sturdy, water-resistant enclosure.
The delay line is available with either single mode or PM fiber pigtails.
Key Features
Specifications
Center wavelengths (λ c ) | SM, single pass: 1310/1550 dual window, 1060, or 840nm PM, single pass: 1310, 1550, 1060, or 840nm |
Wavelength range | λc ±50nm |
Optical delay range | Single-pass: 100 ps (3 cm) or 250 ps (7.5 cm) |
Zero point delay offset | 180
ps, (excluding caps, boots, and fiber pigtails) |
IL | 1.0 dB
nominal |
IL variation over delay range | ±0.3
dB |
