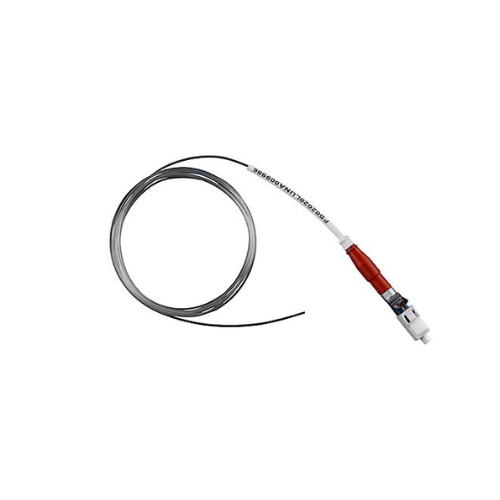

HD6SCT : Strain-Compensated HD Fiber Optic Temperature Sensors
When used with the ODiSI system, the HD-SC temperature sensor measures a continuous temperature profile with a spatial resolution, or gage pitch of 1 cm, enabling the more precise characterization and control of thermal processes and systems. Combined with its low profile and weight, the strain-compensating capability of the HD-SC sensor make it ideal for mapping the surface or embedded temperature of composites and advanced materials during manufacturing or operation.
The strain that is applied to a fiber optic sensor during normal installation of surface-mounted and embedded sensors can cause very significant measurement offsets in non-compensated temperature sensors. The HD-SC temperature sensor, on the other hand, compensates for these strain effects and delivers more accurate and reliable temperature data.
Key Features
Low-profile and flexible for complex geometries
Strain compensation for high accuracy measurements in surface and embedded applications
Polyimide coated fiber housed in PTFE tube
Dielectric and EMI/EMC immune
Plug-and-play operation with ODiSI system
Requires Extended Range Remote Module when used with the ODiSI system
Specifications
- Standard sensor lengths:
- Available from 1 m to 5 m
- Sensor diameter:
- 0.89 mm
- Operating temperature range:
- -40 to 200 °C
- Fiber type:
- Polyimide coated sensing fiber housed in PTFE tubing
- Connector:
- LC/APC
