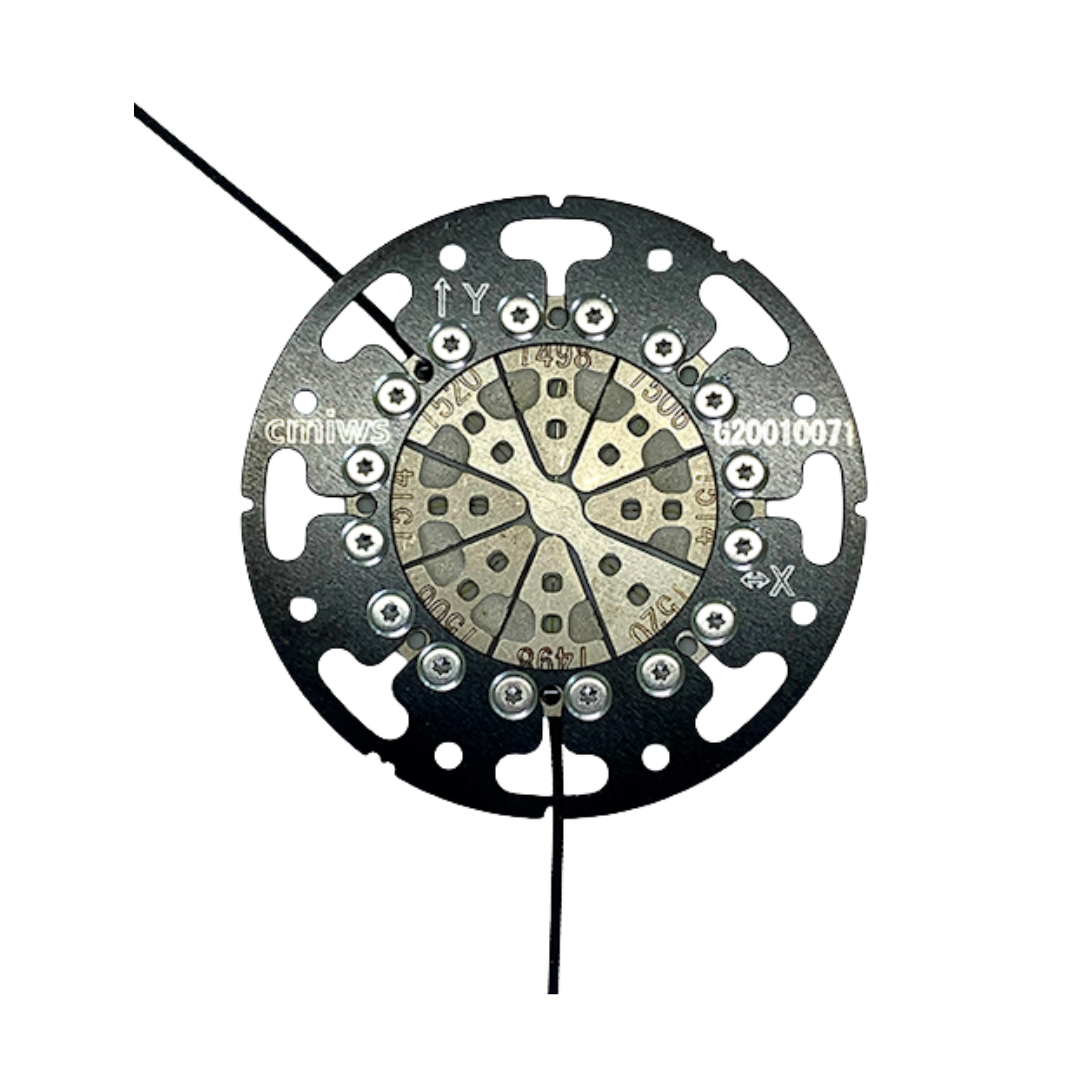

os3300 Optical Strain Rosettes by CMIWS

Luna’s os3300s are fiber Bragg grating (FBG) based strain rosette sensors. Featuring simple integration, low profile sensors that can be dispersed over up to 10km, with 3 active strain elements (0°/45°/90°) for the most robust sensor coverage on the market.

The os3300 features a novel approach to compact spot weldable strain measurements, all while being able to pair with various physical parameters e.g. temperature, displacement, acceleration, tilt, pressure.

Installation is simple and repeatable with a mounting plate affixed on the os3300 to help guide the installer. With strain ranges of -1,800 to 1,800 με, and available integratd temperature compensation, the os3300 series presents a unique capability for sensor deployments. Up to 96 os3300 sensors can be integrated on Luna’s HYPERION platform.

The os3300 series of sensors is compatible with ENLIGHT Sensing Analysis Software, which provides an integrated suite of tools for data acquisition, computation and analysis of optical sensor networks as well as the HYPERION platforms comprehensive Application Programming Interface (API) and examples written in LabVIEW, Python, Matlab, C++ and C#.

Key Features

Ease of installation, simple and repeatable installation
Discrete, low profile, multipoint up to 96 sensors on a single HYPERION instrument
Multiparameter various physical parameters measurements coupled onto the same instrumentation platform
Long distance, with over 10km of coverage

Specifications

Specifications	os3310	os3320 - Temperature Compensated
Measurement Type	Strain rosette	Strain rosette, temperature compensated
FBG Elements	3 - Strain	3 - Strain, 1 temperature compensation
Measurement Range	±1,800με		±1,800με
Strain Sensitivity	~ 1.2 pm/με
Measurement Angles	0, 45, 90°
Operating Temperature	-40 to 120 °C
Measurement Distance	Up to 10km
Measurement Distance	Up to 96, 6 sensors per channel	Up to 80, 5 sensors per channel
Scan Frequency	1kHz and 5kHz instrument options available		1kHz and 5kHz instrument options available
Wavelength Options	1460 to 1620 nm options available
Physical Properties	-
Dimensions	ø 34 mm Diameter, 1.5 mm Thickness
Carrier Material	304 Stainless Steel		304 Stainless Steel
Cable Type / Length	1 mm Fiberglass Braid / 1 m (± 10 cm), each end		1 mm Fiberglass Braid / 1 m (± 10 cm), each end
Fastening Method	Spot Weld		Spot Weld
