PCD-M02/MPC Dynamic Polarization Controller
The MPC series are electrically controlled, all-fiber polarization controllers based on fiber squeezing technology. They are also available with a driver board as the PCD-M02.
The MPC series are fiber squeezer based polarization controllers packaged in a low profile 0.63 inch high enclosure. They are available with 3 or 4 fiber squeezers. Either version can generate any polarization state on the Poincaré sphere, but the 4X version provides an extra degree of freedom for reset-free operation and polarization scrambling. The all fiber design is inherently low loss, has minimal activation loss, and operates over a wide wavelength range. The athermal package design provides temperature stability over a wide temperature range. Each fiber squeezer is controlled by a 0-150V analog control voltage.

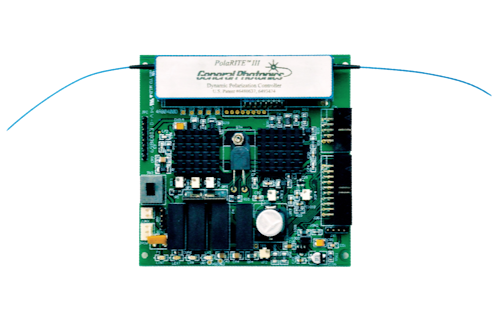

The PCD-M02 integrates an MPC polarization controller with a driver board that allows the control voltage to each fiber squeezer to be specified either by a 0-5V analog control voltage or by a 12-bit TTL signal. The board is powered by standard ±12VDC lab power supplies.
Key Features
Specifications
Polarization Controller
Wavelength range | 1260-1650nm or 980-1310nm standardOthers available |
# of fiber squeezers | 3 or 4 |
Polarization control range | 0-4π
per squeezer |
V π (DC, 23°C) | <35V |
Rise/fall time | 30µs
(10-90% transition for V π change) |
IL | <0.6
dB with connectors 0.05 dB intrinsic |
Activation loss | <0.05
dB |
PDL | <0.05
dB |
PMD | <0.05
ps |
With driver board
Rise/fall time | <400µs (10-90% transition, 140V change)<65µs (10-90% transition, 15V change) |
Analog control voltage | 0-5V |
Digital control | TTL,
12-bit data, 4-bit control |
