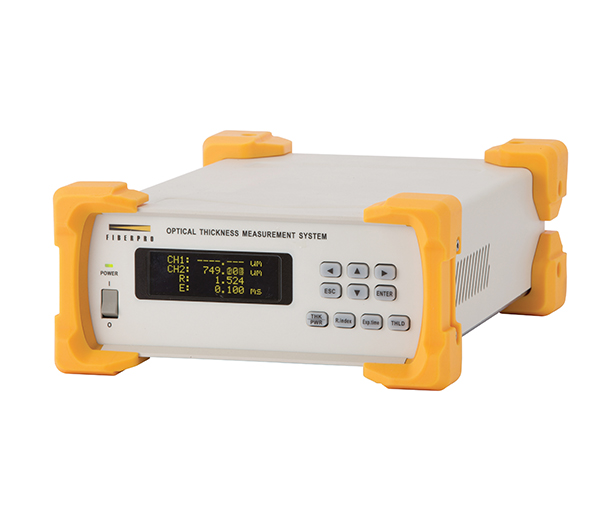

TM5000 (Optical Thickness Measurement System)

  • Portable and compact size
  • Reliable accuracy and repeatability
  • Broad measurement range of 50um to 10mm
  • Non-contact measurement
  • High speed measurement (~1kHz)
  • No calibration needed
  • User friendly operating program
  • Available for OEM business and system integration



>>Catalog<<

Description

FIBERPRO’s Optical Thickness Measurement System, the TM5000, uses white light interferometer-based technology to perform thickness measurement using a non-contact method. Reflections from both surfaces (top and bottom) are collected and returned to the controller for thickness calculation. This system is designed for use in quality control, R&D labs, and production lines. Due to its reliability, accuracy, and ease-of-use, The TM5000 can be relied on by all manufacturers.



Dimensions

200mm x 320mm x 85mm (without rubbe cover) / 230mm x 350mm x 100mm (with rubber cover)



Application

  • Material : Silicon wafer. Sapphire wafer. Glass wafer. SiO2. GaAs. Others
  • Industry : LCD glass panel. Glass products. Medical membrane. Others
