VDL-001 Manual Variable Optical Delay Line
The VDL-001 family of manual variable optical delay lines provides optical path length adjustment of up to 600 ps in single-pass configuration.

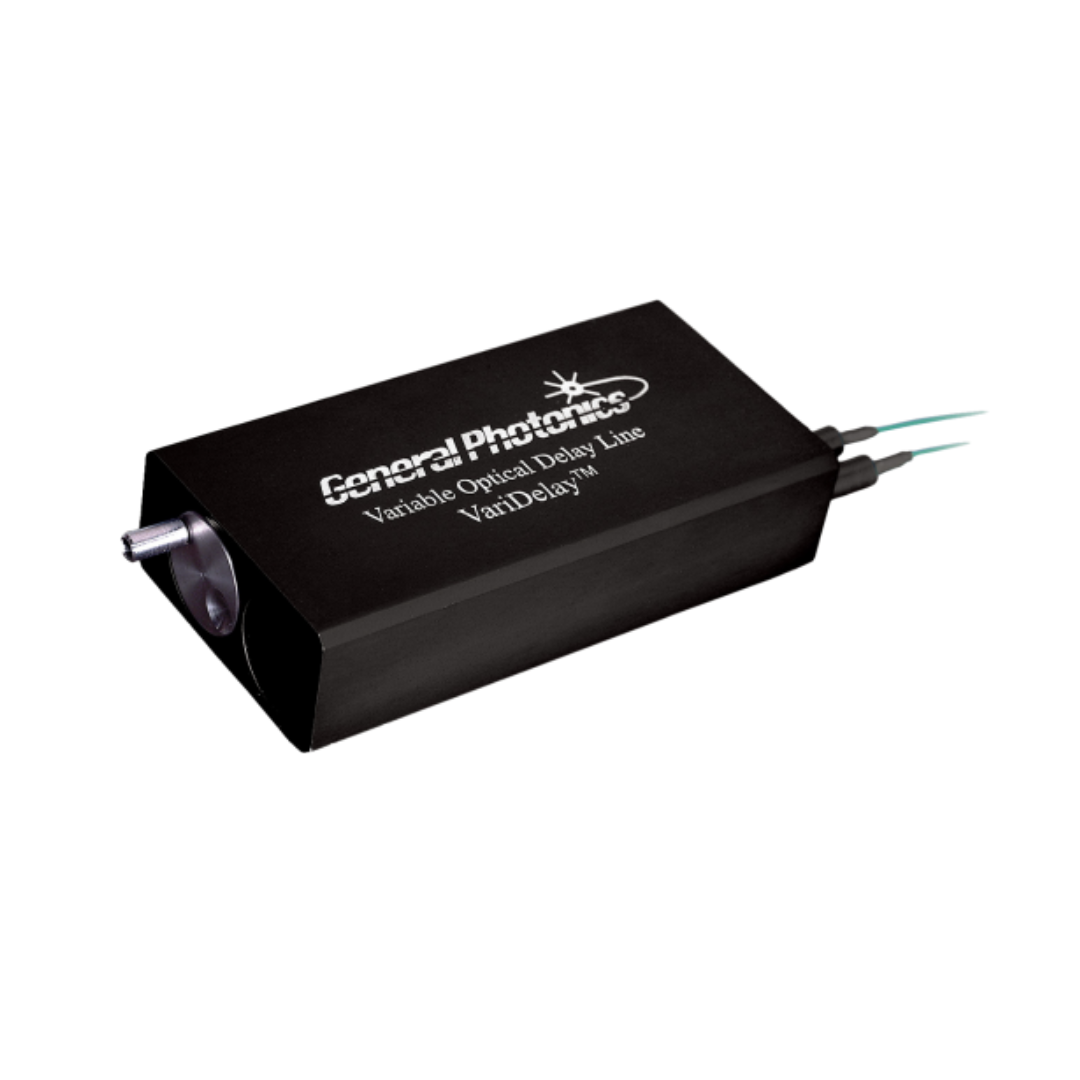

The VDL-001 is a fiber coupled delay line with the delay adjustment path in free space. The delay is adjusted by manually turning a handle on one end of the device, and position is read from a vernier scale on the side. The delay line is available with either single mode or PM fiber pigtails.
Key Features
Specifications
Center wavelengths (λc ) | SM, single pass: 1310/1550 dual window, 1060, or 840nm PM, single pass: 1310, 1550, 1060, or 840nm |
Wavelength range | λc ±50nm |
Optical delay range | Single-pass:
330 ps or 600 ps Double-pass: 1200 ps |
Readout scale resolution | 0.05mm |
IL | 1.0 dB
nominal (1310/1550nm single pass) 1.5 dB nominal (840nm or 1060nm single pass) 1.5 dB nominal (1310 or 1550nm double pass) |
IL variation over delay range | ±0.3 dB (330 ps model) ±0.5 dB (600 ps model) ±0.7 dB (1200 ps model) |
