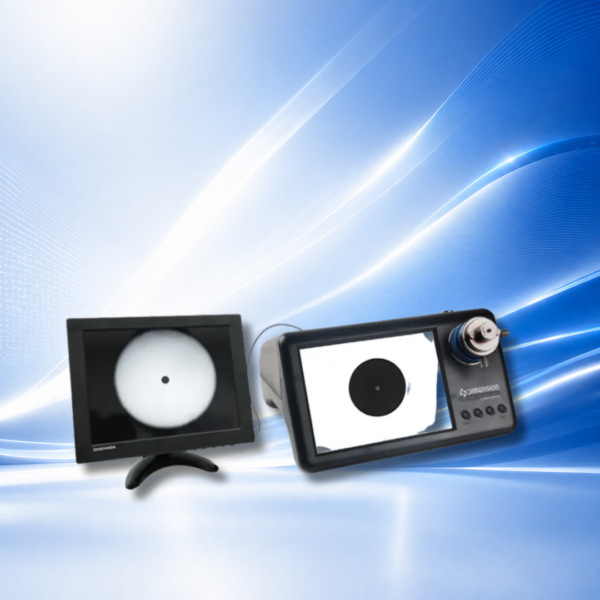

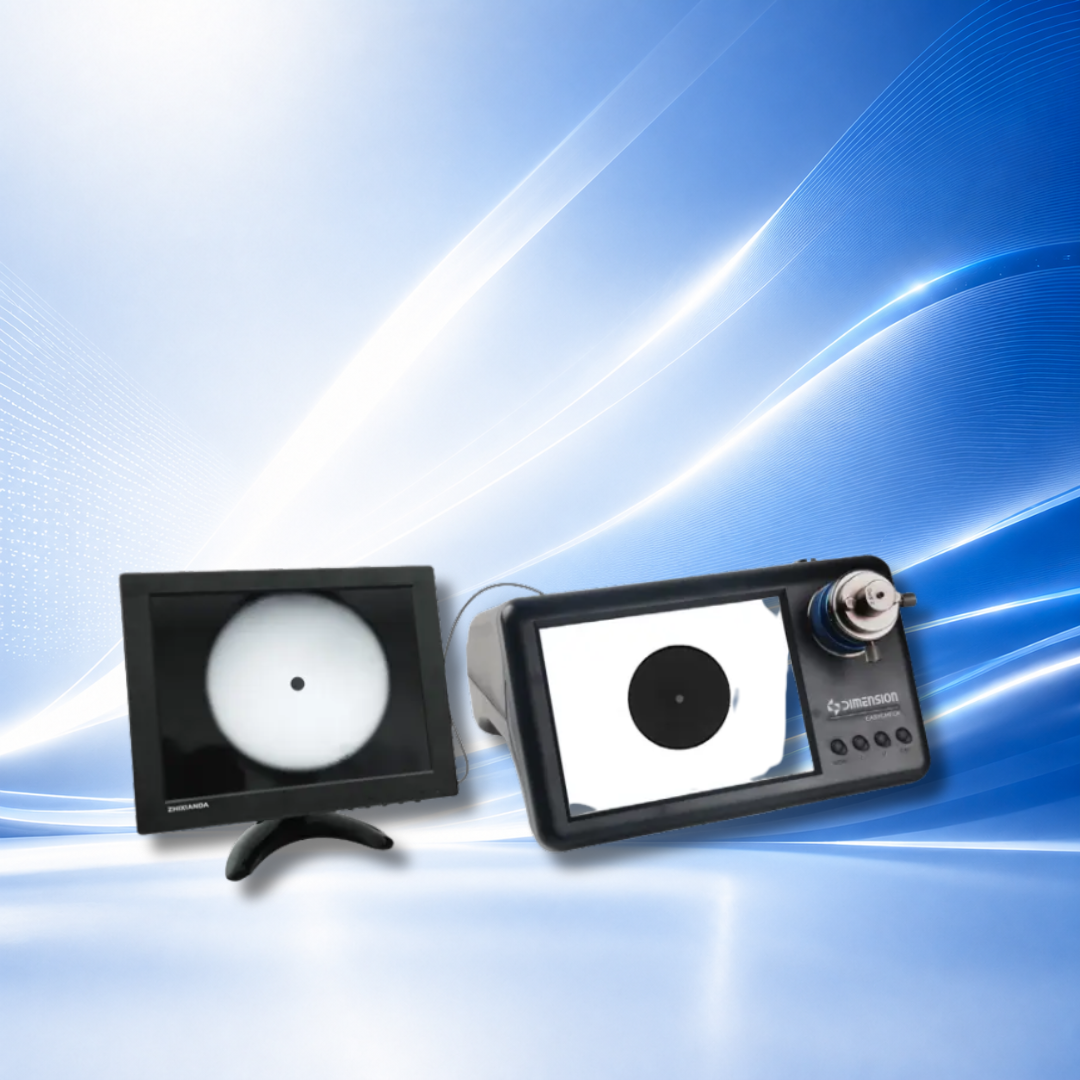

EasyCheck Dual Magnification Fiber Endface Inspector
One focus, double rate effective detection
Clear image quality
A comprehensive interface group
Automatically scan and store images (EC400/200)
Optional foot switch switching ratio (EC400/200)
การตรวจสอบประสิทธิภาพสูงแบบ โฟกัสเดียว ซูมได้ 2 ระดับ พร้อมภาพคมชัด
โฟกัสครั้งเดียว ตรวจสอบได้ เร็วขึ้น 2 เท่า
ให้ภาพที่ คมชัดและชัดเจน
รองรับการเชื่อมต่อด้วย อินเทอร์เฟซที่หลากหลาย
สามารถ สแกนและบันทึกภาพอัตโนมัติ (รุ่น EC400/200)
รองรับ สวิตช์เท้า (Foot Switch) สำหรับสลับอัตราขยาย (รุ่น EC400/200)
Product Overview
Dimension’s dual magnification fiber endface lnspector can quickly and eficiently inspect the quality of fiber end-faces under double-magnificaion through two screen simultaneous display or switch display, Under large maanification, it can inspec fine defects on the endface of fiber. The advantage of this equipment is that one station, one device, and one focusing can realize fiber endface inspection at double rate, saving inspection stations, improving inspection efficiency and reducingproduction costs.
Main features
- Dual Magnification Inspector
- High definition image
- Various interface designs
- Automatic scan code to store picture(EC400/200)
- Optional foot switch to switch magnification(EC400/200)

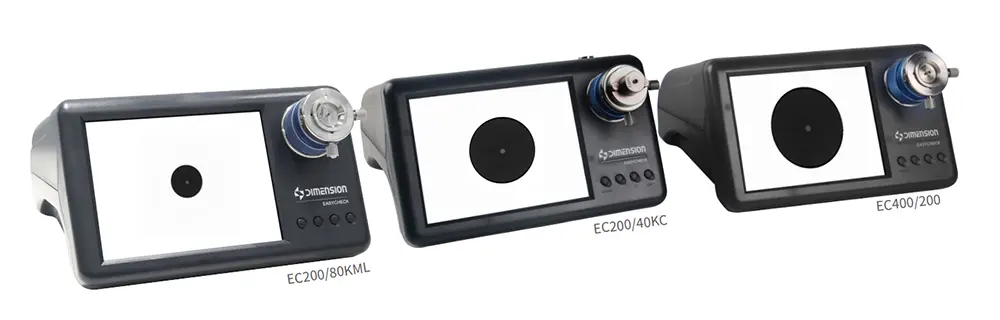

Main applications

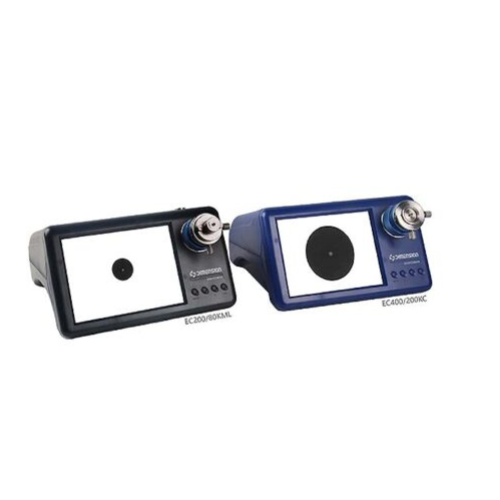

- EC200/80KML: Fiber connectors, transceivers, TOSA/ROSA etc;
- EC400/200: Fiber connectors
- EC200/40KC: Fiber connectors, TOSA/ROSA etc;
Dual Magnification Inspector

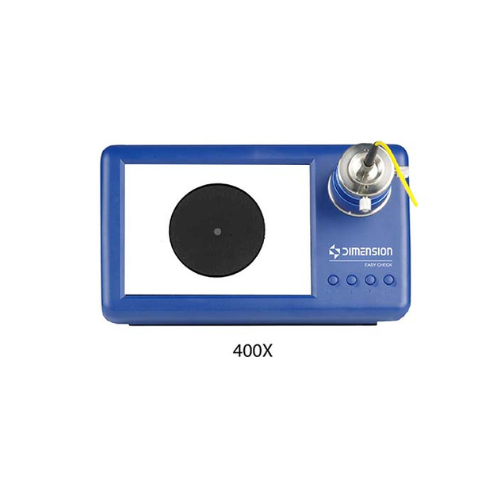

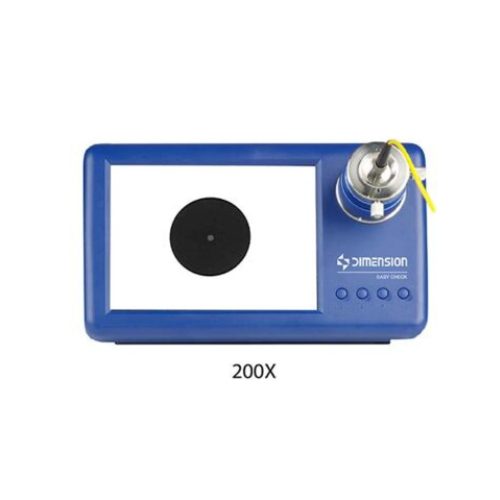

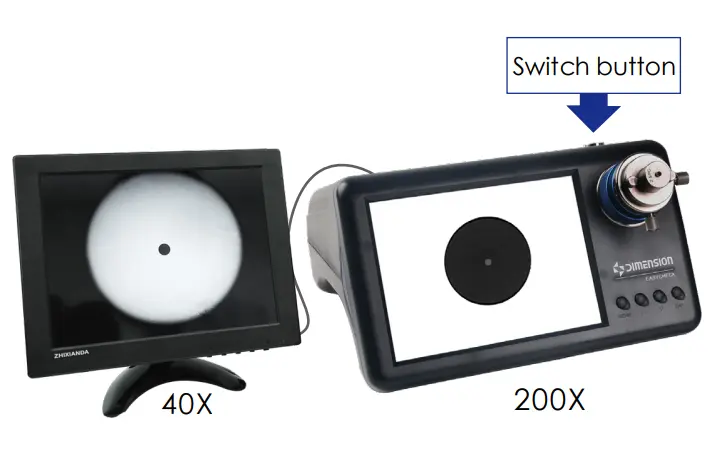

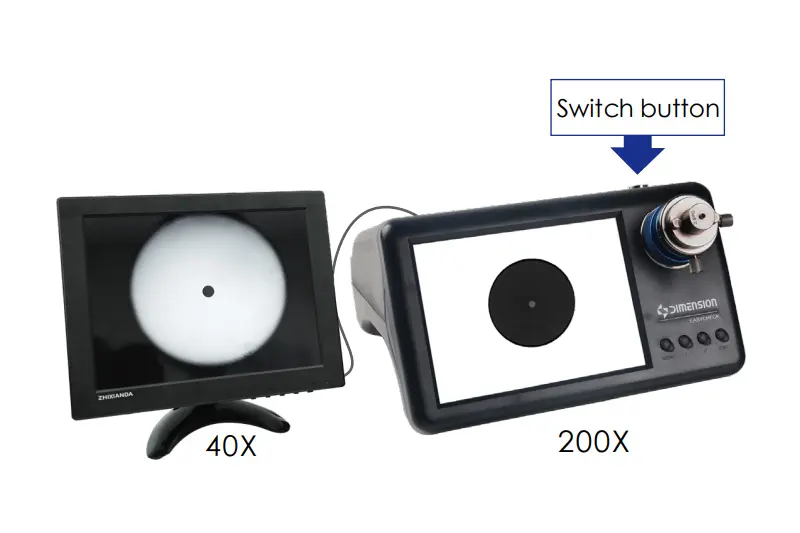

Focusing once, EC200/80KML can simultaneously view the 200X and 80X double-magnification surface through Easycheck magnification fiber endface Inspectors two screens, and can also switch the magnification by pressing the button; EC400/200 can switch between 400X and 200Xthe magnification by pressing the button or the foot switch (optional). View small defects underhigh magnification and view a larger area under small magnification. It can save inspection stations, improve inspection efficiency and reduce production costs.
High definition image
Easycheck dual manification fiber endface lnspectors, with the optimal optical system desian, high-resolution image sensor and 8″ pure black and white digital TFT display, shows you the details of the fiber endface truely.

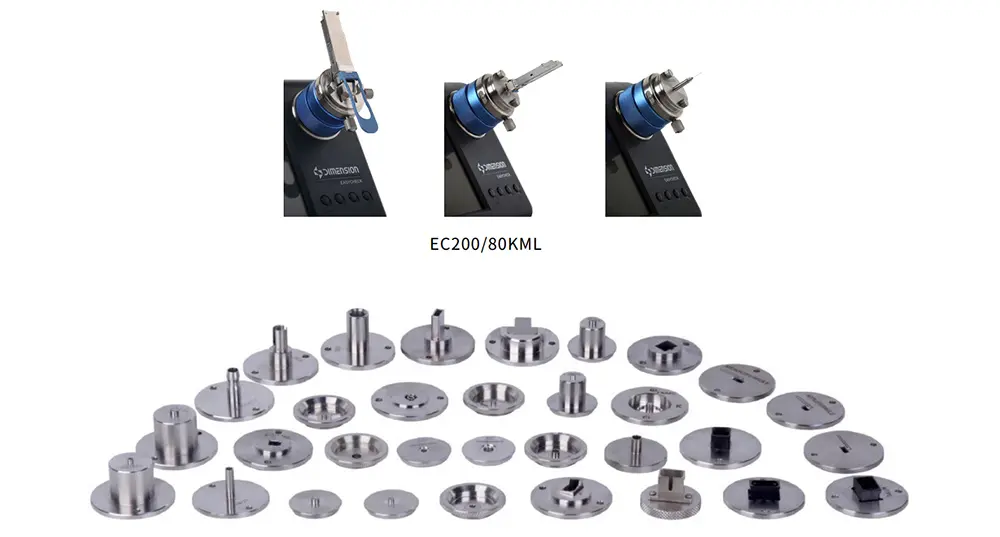

Various interface designs
Easycheck dual magnification fiber endface Inspectors are equipped with a variety of adapting interfaces, which can meet the testing requirements of various products suchas fiber connectors, transceivers, TOSA/ROSA etc.
Convenient auxiliary functions (EC400/200)
In order to meet the operability of production line employees, the function of automatic scan code and storage of pictures is added, and the foot switch triggers the double rate switching function, which is more convenient and flexible to use.
Specifications
Type | EC400/200KC 丨 EC400/200KD | EC200/80KML | EC200/40KC |
Magnification | 400X/200X | 200X/80X | 200X/40X |
X Y Adjustmen | Adjustable | Adjustable | Adjustable |
Focus | Manual | Manual | Manual |
Image Output | —— | AV OUT | AV OUT |
Display | 8 "TFT 800X600 PIX | 8 "TFT 800X600 PIX | 8 "TFT 1024 * 768 PIX |
Interface | 3 * USB, 1 * SD, 1 * Ethernet | —— | —— |
Power Consumption | 3W | 3W | 3W |
Working Temperature | -10 ℃~40 ℃ | -10 ℃~40 ℃ | -10 ℃~40 ℃ |
Storage Temperature | -20 ℃~55 ℃ | -20 ℃~55 ℃ | -20 ℃~55 ℃ |
Power Supply | DC 12V | DC 12V | DC 12V |
Weight | 1.6kg | 1.6kg | 1.6kg |
Size | 270mmX245mmX155mm | 270mmX245mmX155mm | 270mmX245mmX155mm |
