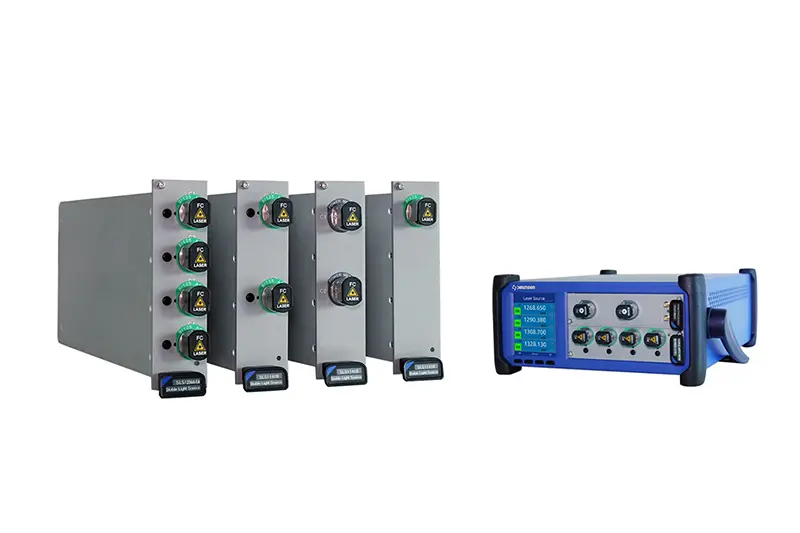

SLED stable light source
Expandable and compatible with DIMENSION’s ALPHA and OMEGA universal optical test platforms.
• 1CH, 2CH, or 4CH output available, each channel could be independently controlled.
Wavelength and power can be customized.
• Support USB / Ethernet / button controlling.
• Modular design, high precision, high reliability interface with patent.
Flexible disassembled SC/FC connector, convenient for post-maintenance.
Product Overview
Stable light source plays an irreplaceable role in all optical testing and researching area. In order to satisfy different application scenario needs, Dimension developed 4 kinds of stable light sources: DFB laser source, FP laser source, SLED broadband light source, and ultra-narrow linewidth laser source.
• 1CH, 2CH, or 4CH output available, each channel could be independently controlled. Wavelength
and power can be customized.
• Support USB / Ethernet / button controlling.
• Modular design, high precision, high reliability interface with patent. Flexible disassembled SC/FC
connector, convenient for post-maintenance.
DFB laser source
Main Features
• High stability, 24-hour power stability is less than ±0.005dB
• High precision TEC temperature controlling module
• Output power up to 20 mW
• Support internal modulation
Applications
• CWDM channel testing
• Optical network monitoring
• IL/RL testing
• Optical passive device, active device testing
• Instrument performance testing
SLED broadband light source
Main advantages
• Wide spectral range (3dB spectral width 90nm)[5]
• High output power (10mW)[5]
• Excellent power stability
Main applications
• Coarse wavelength division multiplexing (CWDM) network testing
• Passive optical network (PON) component manufacturing and testing
• Fiber sensing and spectral analysis.
FP laser source
Main advantages
• Output power higher than 5 mW
• Support internal modulation
Main applications
• Fiber product testing and verification
• Optical component manufacturing and testing
Ultra-narrow linewidth laser source
Main Features
• Ultra-narrow spectral linewidth
• High output power
• High reliability and stability
Main applications
• Fiber bragg grating sensing
• Coherent fiber communication
• Nonlinear research
• Leak detection and monitoring
ordering information
Remarks:
[1] Above specifications are under temperature 23 °C ± 1 °C
[2] Center wavelength is the default value displayed on screen.
[3] Ambient temperature change is less than ±1℃
[4] 20 minutes for preheating if stored at the same temperature before.
[5] Measured wavelength is 1310/1550nm, and the spectral width and output power of SLED light source are related to the central wavelength.
[6] The list of wavelengths can be customized, and the number of output channels should correspond to the number of wavelengths in principle. Take 4-CHs
output as an example. If you need 4-CHs 1310, the list of wavelengths is 1310*4.If need 2-CHs 1310,2-CHs 1550 then the list of wavelengths is 1310*2/1550*2;If
need four different wavelengths, such as 1270/1290/1310/1330, the list of wavelengths will be written as 1270/1290/1310/1330, corresponding to 1/2/3/4 channels in turn.
[7] The Type C light source supports only 1 and 5mW
[8] The 3dB bandwidth of the SLED light source varies slightly with power, ranging from 50 to 90nm.
